SKU: QPGI6E1YN2 |  Mfg. Part: RA38742  | UPC: 806576221906  |
 1 Reviews  |     Share

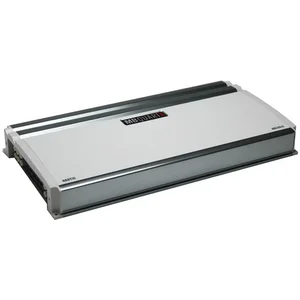

RA38742 - Mb Quart Nautic Marine Class AB Amplifier - 6 Channels, 540W

Special Order
Ships in 1-2 weeks
Condition: New

$259.49  $350.31
Need 10+? Request a volume quote
 Free Shipping for this Item

Product Overview

The Mb Quart Nautic Series Marine Class AB amplifier is designed for marine environments, delivering powerful and high-quality sound. With 540 watts of maximum power and multiple channels, this amplifier provides exceptional audio performance that can withstand the rigors of water, dust, and corrosion.

Technical Specifications

  • Class AB amplifier architecture
  • Marine grade components with conformal-coated PC boards to resist salt spray and moisture
  • ABYC and ASTM certified for safety and performance
  • Life Shield badge indicates waterproof, dustproof, snowproof, and shockproof capabilities
  • Q-stasis preamp for reducing noise from source units
  • High-end Class SQ and Class Q1 circuitry for superior audio quality
  • Built-in equalization with variable frequency adjustment
  • Fluid-FET technology for efficient power production and high sound quality
  • Voltage Gain: 0.2V - 6V
  • Signal-to-noise ratio: >93dB
  • Frequency response: 10Hz - 45kHz
  • 12dB per octave electronic crossover
  • Adjustable bass EQ from 0dB to 9dB at 45Hz
  • No 1-ohm applications
  • Dimensions: 2.2" H x 9.4" W x 17.01" D
  • Power Output: 60W x 6 @ 4Ω, 100W x 6 @ 2Ω, 200W x 3 @ 4Ω bridged
  • Crossover frequency range: High Pass 250Hz - 4kHz, Low Pass 40Hz - 250Hz

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • MB QUART
  • RA38742
  • B00DJ677Y4
  • 806576221906
  • New
  • 13.98 lbs
  • 0 X 0 X 0
  • May 09, 2026
  • Jun 05, 2018
Product Identifiers: Brand: Mb Quart • Part #: RA38742 • UPC: 806576221906 • ASIN: B00DJ677Y4 • Category: Trading Card Singles

RA38742 - Mb Quart Nautic Marine Class AB Amplifier - 6 Channels, 540W
