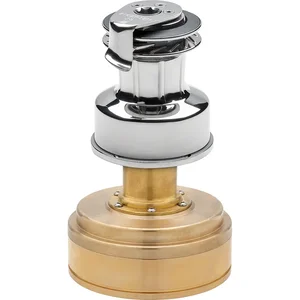

RA2040014100 - Andersen 40ST Below Deck 12V Electric Winch - Variable Speed

40ST Below Deck 12V Electric Winch - Variable Speed

The ANDERSEN 40ST Below Deck Electric Winch offers effortless hoisting and trimming of sails at the touch of a button. Designed for ease of use, this winch makes sail control accessible for any crew member, regardless of strength.

Installation Made Easy
The winch is compact, integrating the motor, gearbox, and controller into a single unit, eliminating the need for an external control box. Simply connect the power cables and attach the push button using the provided output cable.

Variable Speed Efficiency
This electric winch features a brushless DC motor paired with a low-profile planetary gearbox, facilitating variable speed operation in relation to push button pressure. This ensures smooth and quiet functioning while drawing significantly less current than traditional setups.

Illuminated Push Button
Equipped with an LED-enriched push button, the winch provides clear operational status, illuminating when powered on. It incorporates a safety cover to prevent accidental operation and is waterproof rated to IP67.

Built-in Safety Features
- Integrated overload protection: Automatically stops operation if the maximum load is exceeded, resuming once the load is within limits.
- Thermal overload protection: Disables the motor in case of overheating, resetting automatically when normalized.

The ANDERSEN Compact Motor Electric Winch features a stainless steel Power Rib drum for enhanced performance and a self-tailing device that accommodates various line sizes, ensuring optimal control and line longevity.

Specifications

• Drum: 2-15/16 in. (75 mm)
• Base: 6 in. (152 mm)
• Height: 7-1/16 in. (180 mm)
• Line Entry: 3-1/8 in. (79 mm)
• Line Size: 5/16-9/16 in. (8-14 mm)
• Weight: 40 lbs. (18 kg)
• Max Deck Thickness: 2-1/8 in. (54 mm)
• Motor Depth: 7-1/16 in. (180 mm)
• Motor: 7-11/16 in. (195 mm)

The ANDERSEN 40ST Below Deck 12V Electric Winch provides automated sail hoisting and trimming for marine applications. This variable speed winch is designed for vessels requiring efficient line management without manual effort, making sail control accessible to a wider range of crew members. Its compact design integrates the motor, gearbox, and controller into a single unit, simplifying installation by eliminating the need for an external control box. The system operates on 12V power and features a brushless DC motor with a low-profile planetary gearbox, enabling variable speed control based on push button pressure. This configuration contributes to smooth, quiet operation and reduced current draw compared to traditional winch setups. Key features include an illuminated, IP67-rated push button with a safety cover, integrated overload protection, and thermal overload protection. The RA2040014100 model also incorporates a stainless steel Power Rib drum and a self-tailing device compatible with line sizes from 5/16 to 9/16 inches.
