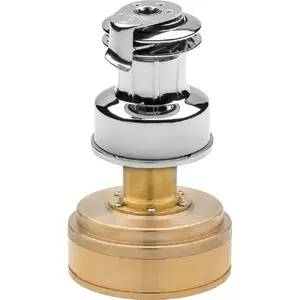

Andersen RA2034014100 34ST Compact Below Deck Electric Winch 12V - Variable Speed

34ST Compact Below Deck Electric Winch - 12V with Variable Speed

The 34ST Compact Electric Winch allows for effortless sail trimming and control, making it accessible for all crew members regardless of their physical strength.

Simple Installation

This electric winch features an integrated motor gearbox and controller, eliminating the need for a separate control box. The connection process involves just the positive and negative power cables and the push button using the included output cable.

Energy Efficient and Variable Speed

Utilizing a brushless DC motor and a low-profile planetary gearbox, this winch optimizes space and significantly reduces current consumption compared to traditional setups. Variable speed operation is proportional to the push button pressure.

Smart Push Button Control

The winch comes with an illuminated push button featuring a hinged safety cover to avoid accidental operation. It is also water-resistant (IP67 rated) and provides status alerts for troubleshooting issues.

Safety Features

Built-in overload and thermal protection mechanisms ensure safety during operation: the winch will halt under excessive load and automatically reset once normal conditions are restored.

This winch is equipped with a durable stainless steel Power Rib drum for optimal power and longevity of the line, alongside a self-tailing device suitable for various line sizes.

Specifications:

• Drum Diameter: 2-3/4 in. (70 mm)
• Base Width: 4-15/16 in. (125 mm)
• Overall Height: 6-3/16 in. (157 mm)
• Line Entry Width: 2-7/8 in. (73 mm)
• Compatible Line Size: 5/16-9/16 in. (8-14 mm)
• Weight: 37.5 lbs. (17 kg)
• Max Deck Thickness: 2-1/8 in. (54 mm)
• Motor Depth: 7-1/16 in. (180 mm)
• Motor Diameter: 7-11/16 in. (195 mm)
