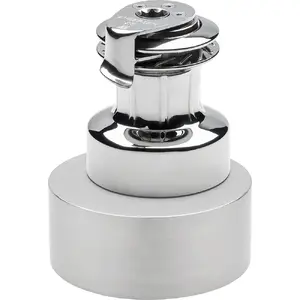

Andersen RA2028015200 Compact 24V Electric Sail Winch

Compact 24V Electric Sail Winch - Variable Speed

This innovative electric winch allows you to effortlessly hoist and trim sails at the touch of a button, making it accessible for any crew member to manage sails and lines with ease and safety.

Simple Installation

The winch features a compact motor design, available in Above Deck or Below Deck configurations. The motor, gearbox, and controller are all integrated, streamlining installation with minimal wiring – just connect the positive and negative cables and the push button for hassle-free use.

Variable Speed Control

Equipped with a brushless DC motor and efficient planetary gearbox, this winch not only saves space but also draws less current. Experience quiet and smooth operation, with speed control directly proportional to the button pressure applied.

Smart Push Button

Supplied with an illuminated push button featuring an LED status indicator, this component allows for safe operation with a water-resistant design. The push button also includes a safety cover and provides diagnostic information for troubleshooting.

Built-in Safeguards

This winch offers integrated overload and thermal protection. It automatically disables operation when maximum load is exceeded and resets when conditions normalize, ensuring reliability and safety during use.

Maintenance Considerations

Mounting the winch on a vertical surface may expose it to moisture, potentially damaging the unit. Regular maintenance and proper care, such as lubrication of seals, are crucial for longevity.

Specifications

• Drum: 2-3/4 in. (70 mm)
• Base: 4-15/16 in. (125 mm)
• Height: 5-13/16 in. (147 mm)
• Line Entry: 5-15/16 in. (151 mm)
• Line Size: 5/16-9/16 in. (8-14 mm)
• Weight: 35.3 lbs. (16 kg)
• Max Deck Thickness: 1-3/4 in. (45 mm)
• Motor Height: 3-3/8 in. (85 mm)
• Motor: 7-7/8 in. (200 mm)
• Motor Depth: 1-9/16 in. - 2-15/16 in. (40 mm - 75 mm)
