RA1041 - Barton Marine SkyDock Storage System 4 to 1 Reduction Up to 175 LBS 4-Point Lift

SkyDock Storage System 4 to 1 Reduction Up to 175 LBS 4-Point Lift

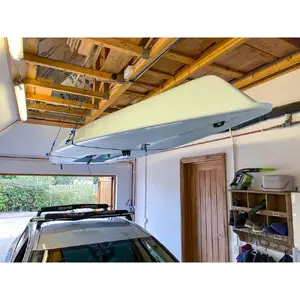

SkyDock is the ultimate roof space storage solution for loads up to 175 lbs (80 KG.)  Designed for use in any space with a ceiling height up to 13' (4 M), the SkyDock works in garages, sheds, barns, and lofts for commercial uses in yards, marinas, yacht clubs and warehouses.

Utilizing a 4:1 purchase system,  It smoothly lifts bulky and awkward objects or loads, out of the way, from the floor or roof of your car, to stow them up high until needed again.  Ideal for dinghies, kayaks, canoes, paddleboards, camping equipment, roof boxes, bicycles, garden furniture, horse saddles, pallets of assorted bits and pieces, and any kit that needs to be stored out of the way, but retrieved easily and smoothly when needed.

Designed with a unique self-locking block, meaning loads can be raised by one person without stress.  If the control line is released the locking block firmly holds the load, stopping items from falling.  For ultimate security, a fixed wall cleat is supplied to tie off the line.

Features:

• Complete garage storage solution for dinghies, kayaks, canoes, camping equipment, etc
• Easily raised by one person
• Self-locking cleating block
• Comprehensive fitting instructions provided

Technical Specifications:

• Mechanical Advantage - 4:1
• Maximum Lift Capacity -  175 lbs (80 KG)
• Maximum Lif Height - 13' (4 M),

In the Box:

• 1 x Black control line with SkyLock block and fiddle block for 4:1 mechanical advantage
• 5 x Eye bolts
• 4 x Pulley blocks with shackles
• 1 x Blue lifting line
• 2 x Blue lifting straps
• 1 x Rope organizer with 2 bolts
• 1 x Horn cleat with 2 screws
• 1 x Instruction manual

*Sold as an Individual Kit

The Barton Marine SkyDock Storage System (part number RA1041) is a ceiling-mounted storage solution designed for B2B environments requiring efficient vertical storage. This system offers a 4:1 mechanical advantage, enabling a single operator to lift loads up to 175 lbs (80 KG) to a maximum height of 13 feet (4 meters). It is suitable for use in garages, sheds, barns, lofts, commercial yards, marinas, yacht clubs, and warehouses. The SkyDock system addresses the challenge of storing bulky or awkward items by utilizing overhead space, thereby freeing up floor area. Its self-locking block mechanism ensures that loads remain securely held if the control line is released, preventing accidental drops. A fixed wall cleat is also provided for additional security. This system is practical for storing items such as dinghies, kayaks, camping equipment, or other large gear that requires organized, accessible, and secure overhead storage.
