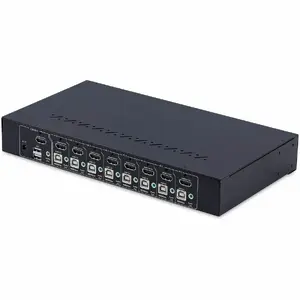

The STARTECH R8AH202-KVM-SWITCH is an 8-port HDMI KVM switch designed for IT environments requiring centralized control of multiple computers. This device allows a single keyboard, mouse, and 4K 60Hz HDMI 2.0 monitor to manage up to eight HDMI-enabled systems. It integrates a 4-port USB 2.0 hub and audio pass-through, consolidating peripheral access. The KVM switch supports BIOS-level control and is operating system independent, compatible with Windows, macOS, and Linux, as well as hardware platforms including Intel, AMD, SnapDragon, ARM, and Apple Silicon. Switching between connected computers can be performed via push-buttons or hotkeys, with LED indicators providing visual status. Included rackmount brackets facilitate installation within 1U of rack space, requiring a minimum mounting depth of 6.5 inches (165mm). This solution addresses the need for efficient management of multiple servers or workstations from a single console, reducing clutter and improving operational workflow.
This KVM switch is operating system independent and provides BIOS-level control. It is compatible with Windows, macOS, and Linux operating systems.
The KVM switch includes rackmount brackets, allowing for installation in 1U of rack space. A mounting depth of 6.5 inches (165mm) or more is required.
Users can switch between the 8 connected HDMI computers using either push-buttons on the unit or hotkey commands. An audible buzzer and LED indicators provide feedback on port selection.
The KVM switch supports 4K 60Hz HDMI 2.0 video resolution.
R8AH202-KVM-SWITCH - Startech 8-PORT HDMI KVM SWITCH WITH 1U RACK MOUNT KIT, 4K 60HZ HDMI 2.0, PUSH-BUTTON & H
