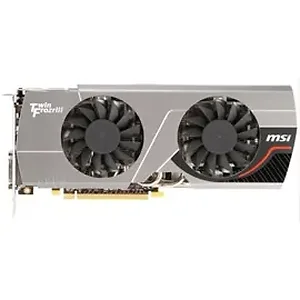

MSI Video Card R6950 TWIN FROZRIII PE/OC HD 6950 2GB DDR5 DVI/HDMI/2xmini-DisplayPort Retail
Propeller Blade Technology
- MSI?s exclusive innovation design.
- 20% more airflow.
- Cool down more components on the PCB.
- 11? cooler and 13.9dB quieter than reference HD 6950.
Power Edition Architecture
- 6+2 Phase PWM Design
1. Higher current to GPU Power.
2. Higher overclocking capability.
3. Better stability in peak load.
- Triple Over-Voltage Function
1. Support voltage adjustment of GPU, memory & VDDCI.
2. Unleash GPU performance totally.
- MSI Afterburner overclocking utility
1. Supports advanced fan speed control.
2. Supports burn-in stability test.
MSI Exclusive P/S Switch Function
- Two fan speed profiles - Performance / Silence
- Performance Mode provides best cooling demand; Silent Mode balances noise and GPU Temperature
| Vendor: | MSI (Micro Star) |
| MPN: | R6950 TWIN FROZRIII PE/OC |
| UPC: | 816909082739 |
Detail Specifications
Graphics Engine :AMD Radeon HD 6950
Bus Standard :PCI Express x16 2.1 |
Memory Type :GDDR5
Memory Size(MB) :2048
Memory Interface :256 bits |
Core Clock Speed(MHz) :850
Memory Clock Speed(MHz) :5200 |
DVI Output :2 (Single-Link DVI-D x1, Dual-Link DVI-I x1)
D-SUB Output :2 (optional, via DVI to D-Sub adaptor) |
HDMI-Output :1
Mini DisplayPort :2
HDCP Support :Y
HDMI Support :Y |
Dual-link DVI :Y
Display Output (Max Resolution) :4x 1920x1200
RAMDACs :400 |
DirectX Version Support :11
OpenGL Version Support :4.0
CrossFire Support :Y
Card Dimension(mm) :270x116x39 mm |
Item Dimension (L"xW"xH"):
13.58 x 10.43 x 3.14
Dimensional Weight:
2.68 lb
Warranty Information:
3 Years |
