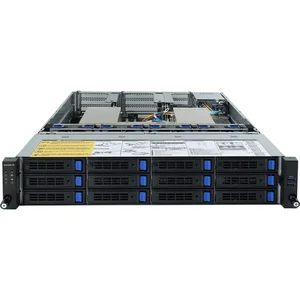

Gigabyte R282-Z90 2U/DP/AMD EPYC 7002/32XDDR4

2U
Motherboard
MZ92-FS0
CPU
AMD EPYC^TM 7002 series processor family
Dual processors, 7nm, Socket SP3
Up to 64-core, 128 threads per processor
TDP up to 225W, cTDP up to 240W
Fully support 280W
NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Compatible with AMD EPYC^TM 7001 series processor family
Chipset
System on Chip
Memory
32 x DIMM slots
DDR4 memory supported only
8-Channel memory per processor architecture
RDIMM modules up to 64GB supported
LRDIMM modules up to 128GB supported
Memory speed: Up to 3200/ 2933 MHz
- Note:
Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC
LAN
2 x 1GbE LAN ports (1 x Intel I350-AM2)
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200 at 60Hz 32bpp
Audio
- Storage
Front side: 12 x 3.5" SATA/SAS hot-swappable HDD/SSD bays from onboard SATA ports
2.5" HDD/SSD supported
Rear side: 2 x 2.5" SATA/SAS hot-swappable HDD/SSD bays from onboard SATA ports
Front side default configuration supports:
12 x SATA drives
or
4 x SATA drives
8 x SAS drives via SAS HBA
SAS card is required for SAS devices support
RAID
-
Peripheral Drives
-
Expansion Slots
Riser Card CRS2027:
- 1 x PCIe x8 slot (Gen4 x8), Low profile half-length
- 1 x PCIe x8 slot (Gen4 x8), Low profile half-length
Riser Card CRS2033:
- 1 x PCIe x16 slot (Gen4 x16), FHHL
- 1 x PCIe x8 slot (Gen4 x8), FHHL
- 1 x PCIe x8 slot (Gen4 x8), FHHL
Riser Card CRS2033:
- 1 x PCIe x16 slot (Gen4 x16), FHHL
- 1 x PCIe x8 slot (Gen4 x8), FHHL
- 1 x PCIe x8 slot (Gen4 x8), FHHL
1 x OCP 3.0 mezzanine slot with PCIe Gen4 x16 bandwidth from CPU_0
Supported NCSI function
1 x OCP 2.0 mezzanine slot with PCIe Gen3 x8 bandwidth (Type1, P1, P2)
Supported NCSI function
1 x M.2 slot:
- M-key
- PCIe Gen3 x4
- Supports NGFF-2242/2260/2280/22110 cards
Internal I/O
1 x M.2 slot
1 x USB 3.0 header
1 x COM header
1 x TPM header
1 x Front panel header
1 x HDD back plane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
Front I/O
2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x HDD activity LED
2 x LAN activity LEDs
Rear I/O
2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x ID button with LED
Backplane I/O
Front side_CBP20C4: 12 x SATA/SAS ports
Rear side_CBP2020: 2 x SATA/SAS ports
Speed and bandwidth: SATA 6Gb/s or SAS 12Gb/s per port
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Power Supply
2 x 1200W redundant PSUs
80 PLUS Platinum
AC Input:
- 100-240V-/ 12-7A, 50-60Hz
DC Input:
- 240Vdc/ 6A
DC Output:
- Max 1000W/ 100-240V-
+12V/ 80.5A
+12Vsb/ 3A
- Max 1200W/ 200-240V- or 240Vdc input
+12V/ 97A
+12Vsb/ 3A
NOTE:
Select 1600W power supply if using 280W CPU with full loading configuration
System Management
Aspeed AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
Dashboard
JAVA Based Serial Over LAN
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup and Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings
OS Compatibility
Windows Server 2016 ( X2APIC/256T not supported)
Windows Server 2019
Red Hat Enterprise Linux 7.6 ( x64) or later
Red Hat Enterprise Linux 8.0 ( x64) or later
SUSE Linux Enterprise Server 12 SP4 ( x64) or later
SUSE Linux Enterprise Server 15 SP1 ( x64) or later
Ubuntu 16.04.6 LTS (x64) or later
Ubuntu 18.04.3 LTS (x64) or later
VMware ESXi 6.5 EP15 or later
VMware ESXi 6.7 Update3 or later
Citrix Hypervisor 8.1.0
