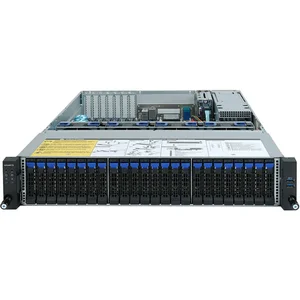

R272-Z31 - Gigabyte 2U/UP/AMD EPYC 7002/16 X DDR4

Dimensions
2U Motherboard
MZ32-AR0 CPU
AMD EPYC^TM 7002 series processor family
Single processor, 7nm technology
Up to 64-core, 128 threads per processor
TDP up to 225W, cTDP up to 240W

Conditional support 280W

Compatible with AMD EPYC^TM 7001 series processor family Chipset
System on Chip Memory
16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 64GB supported
LRDIMM modules up to 128GB supported
Memory speed: Up to 3200/ 2933 MHz

- Note:
Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC LAN
2 x 1GbE LAN ports (1 x Intel I350-AM2)
1 x 10/100/1000 management LAN Video
Integrated in Aspeed AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200 at 60Hz 32bpp Audio
- Storage
Total 26 x 2.5" SATA/SAS hot-swappable HDD/SSD bays
- Front side: 24 x 2.5" SATA/SAS hot-swappable HDD/SSD bays
- Rear side: 2 x 2.5" SATA/SAS hot-swappable HDD/SSD bays
- All devices are connected with SAS expander
Onboard SAS35x36R expander
Bandwidth: SATAIII 6Gb/s or SAS 12Gb/s per port
Default configuration supports:
0 x SAS/SATA drives

Please select SAS card to enable the drive bays RAID
Depends on SAS HBA Peripheral Drives
- Expansion Slots
Total 6 x low profile PCIe Gen4 / Gen3 expansion slots
Slot_6: 1 x PCIe x16 (Gen4 x16 bus) slot
Slot_5: 1 x PCIe x16 (Gen4 x8 bus) slot
Slot_4: 1 x PCIe x16 (Gen4 x16 bus) slot
Slot_3: 1 x PCIe x16 (Gen4 x16 bus) slot
Slot_2: 1 x PCIe x8 (Gen3 x0 or x8 bus) slot
Slot_1: 1 x PCIe x16 (Gen3 x16 or x8 bus) slot shared with slot_2

1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4 Type2 P5 with NCSI supported)

2 x M.2 slots:
- M-key
- PCIe Gen3 x4
- Supports NGFF-2242/2260/2280 cards Internal I/O
2 x M.2 slots
1 x USB 3.0 header
1 x USB 2.0 header
1 x COM_2 header
1 x TPM header
1 x Front panel header
1 x HDD back plane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x Buzzer Front I/O
2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED Rear I/O
3 x USB 3.0
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED Backplane I/O
Front side_CBP20O5: 24 x SATA/SAS ports
Rear side_CBP2021: 2 x SATA/SAS ports
Speed and bandwidth: SATA 6Gb/s or SAS 12Gb/s per port TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010 Power Supply
2 x 800W single PSUs
80 PLUS Platinum

AC Input:
- 100-240V/ 10-4A, 50-60Hz
DC Input:
- 240Vdc/ 4.5A

DC Output:
- 800W
+12V/ 66A
+12Vsb/ 2.5A

NOTE:
Select 1200W power supply if using 280W CPU with full loading configuration System Management
Aspeed AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
JAVA Based Serial Over LAN
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings OS Supported
Windows Server 2016 ( X2APIC/256T not supported)
Windows Server 2019

Red Hat Enterprise Linux 7.6 ( x64) or later
Red Hat Enterprise Linux 8.0 ( x64) or later

SUSE Linux Enterprise Server 12 SP4 ( x64) or later
SUSE Linux Enterprise Server 15 SP1 ( x64) or later

Ubuntu 16.04.6 LTS (x64) or later
Ubuntu 18.04.3 LTS (x64) or later

VMware ESXi 6.5 EP15 or later
VMware ESXi 6.7 Update3 or later

Citrix Hypervisor 8.1.0
