R0X26A - Hpe HP Aruba 6400 6405 v2 C Switch Series With R0X31A Module R0X26C

Product Information

• Part Number: R0X26C
• Manufacturer: HPE Aruba Networking
• Product Name: HP Aruba 6400 6405 v2 C Switch Series With R0X31A Module R0X26C
• Model: HPE Aruba Networking CX 6405 v2 Switch
• Product Type: Modular Layer 3 Switch

Product Description

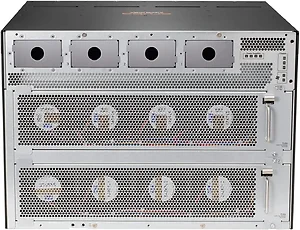

The HPE Aruba Networking CX 6405 v2 Switch (R0X26C) is a modern, flexible, and intelligent modular Layer 3 switch designed for enterprise campus and data center deployments. It is part of the Aruba CX 6400 Switch Series, which features a cloud-centric design with a fully programmable AOS-CX operating system and the Network Analytics Engine (NAE) for advanced monitoring and troubleshooting. This particular part number, R0X26C, refers to the 5-slot chassis configuration and typically includes one Management Module (R0X31A) and two fan trays (R0X32A). It provides a highly available and scalable platform with support for a wide range of line cards (sold separately) to enable 1GbE, 10GbE, 25GbE, 40GbE, and 100GbE connectivity, including high-density HPE Smart Rate multi-gigabit (1/2.5/5GbE) with 60W PoE. The switch supports advanced routing protocols like BGP, EVPN, VXLAN, VRF, and OSPF, along with robust security features such as MACsec encryption and QoS. Its distributed architecture with Gen7 ASICs ensures low latency and non-blocking performance.

Product Specifications

• Chassis Slots: 5 (I/O module slots)
• Form Factor: Rack-mountable (7U)
• Airflow Direction: Front to back airflow
• Switching Capacity: Up to 14 Tbps (chassis capacity, can scale up to 28 Tbps depending on full 6400 series configuration)
• Throughput: Up to 5.7 Bpps (chassis capacity, can scale up to 20 Bpps depending on full 6400 series configuration)
• Management Module: Quad Core ARM Cortex(TM) A72 @ 1.8GHz, 16GB DDR4 ECC memory, 32GB eMMC Flash memory (R0X31A included)
• Power Supplies: Supports up to 4 modular front-serviceable power supplies (sold separately, e.g., R0X35A, R0X36A)
• Redundant Power Supply: Supported (optional)
• Fans: 2 field replaceable system fan trays (R0X32A included)
• Routing Protocols: BGP-4, EVPN, VXLAN, VRF, OSPFv2/v3, IGMPv2/v3, MLDv2, PBR, Static IPv4/IPv6 routing, ECMP, BFD
• Management Features: HPE Aruba Networking AirWave, HPE Aruba Networking Central, Network Management HPE Aruba Networking Switch Multi-Edit Software, HPE Aruba Networking CX Mobile App, CLI, SNMP v2c/v3, RMON, HTTPS, TFTP, SSH
• Supported PoE Standards: IEEE 802.3af, 802.3at, 802.3bt (with appropriate line cards and power supplies)
• Jumbo Frame Support: 9198 bytes
• MAC Address Table Size: 32768 entries
• Dimensions (H x W x D): 30.66 cm x 44.26 cm x 44.85 cm (12.1 x 17.5 x 17.7 inches)
• Net Weight: 29.3 kg (64.59 lbs)
• Operating Temperature: 0 to 40 ?C (32 to 104 ?F)
• Operating Humidity: 15 to 95% (non-condensing)
• Environmental Compliance: RoHS, WEEE
• Product Color: Black

The HPE Aruba Networking CX 6405 v2 Switch Series, part number R0X26A, is a modular Layer 3 switch designed for enterprise campus and data center environments. This unit is a 5-slot chassis configuration, including one Management Module (R0X31A) and two fan trays (R0X32A). It provides a scalable platform with support for various line cards (sold separately) to enable 1GbE, 10GbE, 25GbE, 40GbE, and 100GbE connectivity, including high-density HPE Smart Rate multi-gigabit with 60W PoE. The switch supports advanced routing protocols such as BGP, EVPN, VXLAN, VRF, and OSPF, alongside security features like MACsec encryption and QoS. Its distributed architecture with Gen7 ASICs aims for low latency and non-blocking performance. This product is suitable for organizations requiring a flexible, high-capacity networking solution with advanced management and troubleshooting capabilities via the AOS-CX operating system and Network Analytics Engine.
