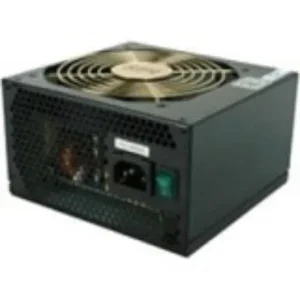

Sparkle Power R-SPI600GHN 600W Active PFC ATX Power Supply with 80 PLUS Certification

Out of Stock
Condition: New

$117.34  $158.41
 Free Shipping for this Item

Product Overview

The 600W Active PFC ATX Power Supply is designed to deliver reliable power to your PC components. Featuring 80 PLUS certification, it ensures high efficiency and reduced energy consumption. With NVIDIA SLI readiness, this power supply is perfect for gaming and high-performance systems.

Built to provide stable voltage with multiple outputs, and equipped with essential safety features, this power supply guarantees long-term performance.

Technical Specifications

  • Temperature Range: Operating 10-50°C, Storage -20 to +80°C
  • Humidity: 5-95% RH during operation and storage
  • Dielectric Withstand: 1800 VAC for 1 sec between primary and frame ground
  • Efficiency: Average 80%, maximum up to 85%
  • Rise time: Less than 20 ms
  • Hold-up Time: 17 ms minimum at nominal input voltage
  • Power Good Signal: Power on delay time of 100-500 ms, off delay of 1 ms minimum
  • Leakage Current: Less than 3.5 mA
  • MTBF: 100,000 hours at maximum load at +25°C
  • Dimensions: 140x150x86 mm (5.5x5.9x3.4 in)
  • Input Voltage Range: 90-265 VAC (RMS), full range
  • Input Frequency: 47-63 Hz
  • Input Current: 7A (RMS) at 115VAC, 3.5A (RMS) at 230VAC
  • Inrush Current: Typical 100A at cold start
  • Output Voltage: +3.3V, +5V, and multiple +12V outputs with specified load requirements and ripple noise limits
  • Weight: 6.0 lbs
  • Warranty: 3 Years

Product Details

  • Manufacturer:
  • Model Number:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • SPARKLE POWER
  • R-SPI600GHN
  • 677808600215
  • New
  • 5 lbs
  • 0 X 0 X 0
  • Feb 19, 2026
  • Oct 28, 2010
Product Identifiers: Brand: Sparkle Power • Part #: R-SPI600GHN • UPC: 677808600215 • Category: Monitor Supplies
