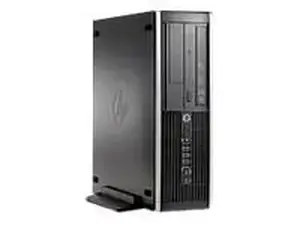

| Product Description | HP Compaq 6200 Pro - Core i3 2100 3.1 GHz |
| Type | Personal computer |
| Form Factor | Small form factor |
| Dimensions (WxDxH) | 13.3 in x 14.9 in x 3.9 in |
| Weight | 16.8 lbs |
| Localization | English / United States |
| Processor | 1 x Intel Core i3 (2nd Gen) 2100 / 3.1 GHz ( Dual-Core ) |
| Cache Memory | 3 MB |
| Cache Per Processor | 3 MB |
| RAM | 4 GB (installed) / 32 GB (max) - DDR3 SDRAM - non-ECC - 1333 MHz - PC3-10600 |
| Storage Controller | Serial ATA ( Serial ATA-600 ) |
| Hard Drive | 1 x 250 GB - standard |
| Optical Storage | DVD±RW (±R DL) / DVD-RAM |
| Monitor | None. |
| Graphics Controller | Intel HD Graphics 2000 Dynamic Video Memory Technology |
| Audio Output | Sound card - stereo |
| Networking | Network adapter - Ethernet, Fast Ethernet, Gigabit Ethernet |
| Power | AC 120/230 V ( 50/60 Hz ) |
| OS Provided | Microsoft Windows 7 Professional |
| Microsoft Office Preloaded | Includes a pre-loaded image of select Microsoft Office 2010 suites. Purchase an Office 2010 Product Key Card or disc to activate preloaded software on this PC. |
| Environmental Standards | ENERGY STAR Qualified , EPEAT Gold |
| Manufacturer Warranty | 5 years warranty - on-site |
| General |
| Personal computer | | | Small business, corporate business | | | Small form factor | | | Speaker, solenoid hood lock | | | Trusted Platform Module (TPM 1.2) Security Chip | | | 13.3 in | | | 14.9 in | | | 3.9 in | | | 16.8 lbs | | | English / United States | | |
| Processor |
| Intel Core i3 (2nd Gen) 2100 / 3.1 GHz | | | Dual-Core | | | Yes | | | 1 | | | 1 | | | Upgradable | | |
| Cache Memory |
| |
| Mainboard |
| |
| RAM |
| 4 GB / 32 GB (max) | | | DDR3 SDRAM - non-ECC | | | 1333 MHz | | | PC3-10600 | | | DIMM 240-pin | | | Unbuffered, dual channel memory architecture | | |
| Storage Controller |
| 1 x Serial ATA - integrated | | | Serial ATA-600 | | |
| Storage |
| 1 x 250 GB - standard - 7200 rpm - Native Command Queuing (NCQ) | | |
| Optical Storage |
| DVD±RW (±R DL) / DVD-RAM - Serial ATA | | | 40x (CD) / 16x (DVD) | | | 40x (CD) / 16x (DVD±R) / 8x (DVD-R DL) / 12x (DVD+R DL) | | | 32x (CD) / 6x (DVD-RW) / 8x (DVD+RW) / 12x (DVD-RAM) | | |
| Monitor |
| |
| Graphics Controller |
| Integrated | | | Intel HD Graphics 2000 Dynamic Video Memory Technology | | | DisplayPort | | | Yes | | |
| Audio Output |
| Sound card - integrated | | | Stereo | | | 192 kHz | | | High Definition Audio | | |
| Input Device |
| |
| Networking |
| Network adapter - integrated | | | Intel 82579LM | | | Ethernet, Fast Ethernet, Gigabit Ethernet | | | ASF 2.0 | | | Wake on LAN (WoL), PXE support, auto-uplink (auto MDI/MDI-X) | | | IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3az | | |
| Expansion / Connectivity |
1 (total) / 0 (free) x front accessible - 5.25" x 1/2H
1 (total) / 1 (free) x front accessible - 3.5" x 1/3H
1 (total) / 0 (free) x internal - 3.5" x 1/3H | | 1 (total) / 1 (free) x PCI - low-profile
2 (total) / 2 (free) x PCI Express x1 - low-profile
1 (total) / 1 (free) x PCI Express x16 - low-profile
1 (total) / 0 (free) x processor
4 memory - DIMM 240-pin | | 10 x Hi-Speed USB - 4 pin USB Type A ( 4 front, 6 rear )
1 x audio - line-in/microphone - mini-phone stereo 3.5 mm
1 x audio - line-out - mini-phone stereo 3.5 mm
1 x headphones - output - mini-phone stereo 3.5 mm ( 1 in front )
1 x microphone - input - mini-phone 3.5 mm ( 1 in front )
1 x mouse - generic - 6 pin mini-DIN (PS/2 style)
1 x keyboard - generic - 6 pin mini-DIN (PS/2 style)
1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45
1 x serial - RS-232
1 x display / video - VGA - 15 pin HD D-Sub (HD-15)
1 x audio / video - DisplayPort - 20 pin DisplayPort | | |
| Miscellaneous |
| Security lock slot (cable lock sold separately), system password, power-on password, parallel port I/O control, serial port I/O control, USB port control, DriveLock, active Power Factor Correction (PFC), padlock loop | | | ACPI, RoHS, WEEE | | |
| Power |
| Power supply | | | AC 120/230 V ( 50/60 Hz ) | | | 240 Watt | | |
| Operating System / Software |
| Microsoft Windows 7 Professional | | | Includes a pre-loaded image of select Microsoft Office 2010 suites. Purchase an Office 2010 Product Key Card or disc to activate preloaded software on this PC. | | | Red Hat Enterprise Linux, SUSE Linux Enterprise Desktop 11 | | | PDF Complete Special Edition, Microsoft Office 2010 Starter, HP Vision Diagnostics | | |
| Environmental Standards |
| |
| Manufacturer Warranty |
| 5 years warranty | | | Limited warranty - parts and labor - 5 years - on-site | | |
| Environmental Parameters |
| 50 °F | | | 95 °F | | | 10 - 90% (non-condensing) | | |
