General Information
Manufacturer:StarTech.com
Manufacturer Part Number:QSFP40GLR4ST
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com

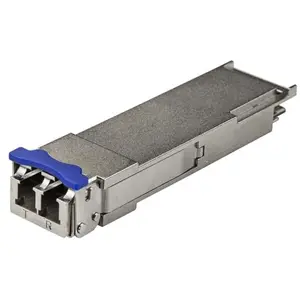

Product Name:Cisco QSFP-40G-LR4 Compatible QSFP+ Transceiver Module - 40GBASE-LR4
Marketing Information:The QSFP40GLR4ST is a Cisco QSFP-40G-LR4 compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco™ brand switches and routers. It delivers dependable 40 GbE connectivity over fiber cable, for 40GBASE-LR4 compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications: - Wavelength: 1270nm to 1330nm
- Maximum Data Transfer Rate: 40 Gbps
- Type: Single Mode Fiber
- Connection Type: LC Connector
- Maximum Transfer Distance: 10 km (6.2 mi)
- MTBF: 1,489,426 hours
- Power Consumption: Less than 2.5 Watts
- Digital Diagnostics Monitoring (DDM): Yes
This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
Packaged Quantity:1
Product Type:QSFP+
Technical Information
Application/Usage:
- Data Networking
- Optical Network
Interfaces/Ports
Total Number of Ports:1
Connector Type:LC
Interfaces/Ports Details:1 x LC Duplex 40GBase-LR4 Network
Media & Performance
Media Type Supported:Optical Fiber
Fiber Mode Supported:Single-mode
Ethernet Technology:40 Gigabit Ethernet
Network Technology:40GBase-LR4
Physical Characteristics
Form Factor:
- Hot-pluggable
- Hot-swappable
Height:0.5"
Width:0.7"
Depth:2.8"
Weight (Approximate):0.10 lb
Miscellaneous
Compatibility:
Cisco Firepower Switches: - ASR1000
- ASR9000
- C9300
- C3850
Environmentally Friendly:Yes
Environmental Certification:
Country of Origin:China
Warranty
Limited Warranty:Lifetime
