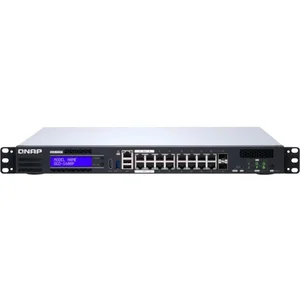

QGD-1600P-4G-US - Qnap 16P 1GBE SW W/2 RJ45&SFP+ COMBO

Management Type
Web Managed
CPU
Intel Celeron J4115 quad-core 1.8 GHz processor (burst up to 2.5 GHz)
CPU Architecture
64-bit x86
System Memory
4 GB
Drive Bays
2 x 2.5-inch SATA 6Gb/s, 3Gb/s
Operating Temperature
0^oC to 45^oC (32^oF to 113^oF)
Relative Humidity
5% to 95% non-condensing, wet bulb: 27^oC (80.6^oF)
Certifications
CE, FCC, VCCI, BSMI RCM
Electromagnetic Compliance
CLASS A, UL62368
Jumbo Frames
9k
QTS Built-in
Yes
Floating Point Unit
Yes
Graphics Processors
Intel HD Graphics 600
LCD Management
Yes
Encryption Engine
Yes (AES-NI)
Maximum Memory
8 GB (2 x 4 GB)
Memory Slot
2 x SODIMM DDR4
Flash Memory
4GB (Dual boot OS protection)
Drive Compatibility
2.5-inch bays:
2.5-inch solid-state drives
2.5-inch hard disk drives
Hot-swappable
Yes
M.2 SSD Slots
Optional via PCIe adapter
SSD Cache Acceleration Support
Yes
File System: Internal Hard Drive
EXT4
File System: External Hard Drive
EXT3, EXT4, NTFS, FAT32, HFS+, exFAT (optional license)
Buttons
Device PSU power button
Host power button
Host reset button(load default)
Switch reset button
LED Indicators
Per Port: Link/Activity/Speed/PoE
Per System: Warning/PoE/Fan
Number of Ports
16
Management Port
1
1GbE (RJ45)
14
1GbE SFP/RJ45 Combo Ports
2
Total PoE Ports
16
PoE PSE (802.3af, 15.4W)
Ports 1-16
PoE+ PSE (802.3at, 30W)
Ports 1-16
PoE++ PSE (802.3bt, 60W)
Ports 1-4
PoE Power Output
Ports 1-4 (60W), Ports 5-16 (30W)
Total PoE Power Budget
370W
PCIe Slot
Slot 1: PCIe Gen2 (x2)
Slot 2: PCIe Gen2 (x2)
USB 3.0 port
1
USB 2.0 port
2
USB 3.1 Gen 2 (10Gbps) Port
Optional via PCIe adapter
Form Factor
Rackmount
HDMI Output
1
Power Supply Description
Internal Power Supply Unit
Max. Power Consumption
418W
Input Power Type
AC
Input Voltage Range
100-240VAC, 50/60 Hz
MAC Address Table
8K
Total Non-Blocking Throughput
16Gbps
Switching Capacity
32Gbps
Management Interface
CLI/Web
Energy Efficient Ethernet (IEEE 802.3az complaint)
Yes
Fan
System: 2 x 4 cm (12V DC)
Supported Standards
IEEE 802.3 10Tx Ethernet
IEEE 802.3u 100Tx Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3z 1000Base-X
IEEE 802.3x Full-duplex flow control
IEEE 802.3af/at/bt Power-over-Ethernet (PoE)
IEEE 802.1q Virtual LANs (VLAN)
IEEE 802.1p QoS Protocol for Traffic Prioritization
Item Dimension (L"xW"xH")
21 x 16 x 7
Weight
17.00 LB
Warranty Information
2 years
