Technical Specifications

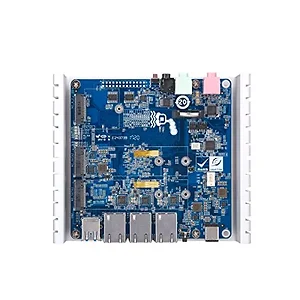

<b>CPU</b><br> Annapurna Labs AL-314, 4-core,1.7GHz <b>System Memory </b><br>2 GB DDR3L (On-board) <b>Flash Memory </b><br>512MB NAND <b>Drive Compatibility </b><br>M.2 SATA SSD, SATA 6 Gb/s and 3 Gb/s <b>M.2 SSD</b><br> Slot 2 x M key 2260/2280 types <b>Other slot </b><br>1 x M.2 A key 2230 type (wireless module) <b>USB Port </b><br>2 x USB 3.1 Gen1 Type A <b>Gigabit Ethernet </b><br>Port 3 x RJ45 <b>Audio </b><br> 1 x 3.5mm Audio-out jack<br>1 x 3.5mm Audio-in jack <b>Maintenance Port </b><br>1 x 3.5mm jack <b>LED Indicators </b><br>System Status, SSD0, SSD1, User Defined, Wirelwss Module <b>Real-Time Clock (RTC) </b><br>V (with one CR2032 battery and one additional power port) <b>Buttons</b><br> Power, System Reset <b>Form Factor </b><br>System Development Board with Heatsink Base <b>Power Consumption (W) SSD</b><br> Idle: 9.49 W<br>In operation: 13.31 W <b>Operating Temperature and Relative Humidity </b><br>0 to 35<sup>o</sup>C, 5 to 95%, non-condensing, wet bulb temperature: 27<sup>o</sup>C <b>Power Supply Unit </b><br>External, 12V, 36W <b>Fan </b><br>1 x connector for 4-wire fan <b>Item Dimension ( L inchxW inchxH inch) </b><br> 9 x 8 x 3 <b>Weight</b><br>2.31lb
