Technical Specifications
LJ 5200TN 35PPM 11X17 LASERPR TRAY NTWK 110V
If efficiency and versatility are on your requirements list, check out this powerful, wide-format tabloid laser printer. With total input capacity of 850 sheets and ready-to-go networking, the LaserJet 5200tn is sure to impress your workgroup.
*
MAIN SPECIFICATIONS

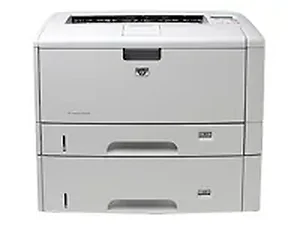

Product Description HP LaserJet 5200tn - printer - B/W - laser
Printer Type Workgroup printer - laser - monochrome
Dimensions (WxDxH) 19.3 in x 23.6 in x 15.9 in
Weight 66.6 lbs
Localization English / United States
Max Media Size (Standard) Tabloid Extra (12 in x 18 in)
Min Media Size (Custom) 3 in x 5 in
Max Media Size (Custom) 12.3 in x 18.5 in
Print Speed Up to 35 ppm - black normal - Letter A Size (8.5 in x 11 in) ¦ Up to 18.5 ppm - Tabloid Extra (12 in x 18 in)
Max Resolution ( B&W ) 1200 dpi x 1200 dpi
Image Enhancement Technology HP ProRes 1200 / HP FastRes 1200
Interface Parallel, USB, Ethernet 10/100Base-TX
Processor 460 MHz
RAM Installed ( Max ) 64 MB ( 512 MB ) - DDR SDRAM - DIMM 100-pin
Card Reader Card reader
Language Simulation PCL 5E, PostScript 3, PCL 6
Media Type Envelopes, transparencies, labels, plain paper, vellum paper, cards, bond paper, recycled paper
Total Media Capacity 850 sheets
Media Handling 100-sheet multipurpose tray, 250-sheet input tray, 500-sheet input tray
Monthly Duty Cycle 65000 pages
Recommended Monthly Volume 2500 - 10000 pages
Networking Print server - Ethernet, Fast Ethernet - integrated
Printer Features Optional duplex
Power AC 120 V
System Requirements HP-UX, Novell NetWare, Linux, Microsoft Windows 2000, Microsoft Windows XP Home Edition, Microsoft Windows XP Professional, Microsoft Windows Server 2003, Apple MacOS X 10.3, Apple MacOS X 10.2.8, Microsoft Windows 7, Apple MacOS X 10.4, Microsoft Windows Vista, Apple MacOS X 10.6, Apple MacOS X 10.5
Microsoft Certification Certified for Windows Vista
Environmental Standards ENERGY STAR Qualified
Manufacturer Warranty 1 year warranty
General
Printer Type Workgroup printer - laser - monochrome
Width 19.3 in
Depth 23.6 in
Height 15.9 in
Weight 66.6 lbs
Localization English / United States
Printer
Print Speed Up to 35 ppm - black normal - Letter A Size (8.5 in x 11 in) Up to 18.5 ppm - Tabloid Extra (12 in x 18 in)
Built-in Devices Status LCD
Connectivity Technology Wired
Interface Parallel, USB, Ethernet 10/100Base-TX
Max Resolution ( B&W ) 1200 dpi x 1200 dpi
Image Enhancement Technology HP ProRes 1200 / HP FastRes 1200
PostScript Support Standard
First Print Out Time B/W 10 sec
Language Simulation PCL 5E, PostScript 3, PCL 6
Fonts Includedϡ x PostScript 103 x scalable PCL
Printer Features Optional duplex
Media Handling 100-sheet multipurpose tray, 250-sheet input tray, 500-sheet input tray
Processor
Processor 460 MHz
RAM
RAM Installed ( Max ) 64 MB / 512 MB (max)
Technology / Form Factor DDR SDRAM - DIMM 100-pin
Card Reader
Type Card reader
Supported Flash Memory Cards CompactFlash Card
Media Handling
Media Type Envelopes, transparencies, labels, plain paper, vellum paper, cards, bond paper, recycled paper
Min Media Size (Custom) 3 in x 5 in
Max Media Size (Custom) 12.3 in x 18.5 in
Media Sizes Letter A Size (8.5 in x 11 in), Legal (8.5 in x 14 in), Executive (7.25 in x 10.5 in), A5 (5.83 in x 8.25 in), ARCH B (12 in x 18 in), Tabloid Extra (12 in x 18 in), 12.3 in x 18.3 in, Statement (5.5 in xb.5 in), 3 in x 5 in, 11 in x 17 in, 11.7 in x 17 in, 8.5 in x 13 in
Envelope Sizes US No 10 (4.1 in x 9.5 in), International DL (4.33 in x 8.66 in), Monarch (3.87 in x 7.5 in)
Media Weight 60 g/m2 - 199 g/m2
Total Media Capacity 850 sheets
Media Feeder(s)[ x autoload - 100 sheets - 12.3 in x 18.3 in weight: 60 g/m2 - 199 g/m2 1 x autoload - 250 sheets - 11.7 in x 17 in weight: 60 g/m2 - 120 g/m2 1 x autoload - 500 sheets - 11.7 in x 17 in weight: 60 g/m2 - 120 g/m2
Max Media Capacity 850 sheets
Output Trays Capacity 250 sheets
Duty Cycle
Monthly Duty Cycle 65000 pages
Recommended Monthly Volume 2500 - 10000 pages
Networking
Networking Print server - integrated
Connectivity Technology Wired
Data Link Protocol Ethernet, Fast Ethernet
Network / Transport Protocol AppleTalk
Expansion / Connectivity
Expansion Slot(s)[ (total) / 1 (free) x memory - DIMM 100-pin 1 (total) / 1 (free) x EIO
Connections[ x parallel - IEEE 1284 (EPP/ECP) - 36 pin Centronics 1 x Hi-Speed USB 1 x network - Ethernet 10Base-T/100Base-TX - RJ-45
Miscellaneous
Consumables Included 1 x toner cartridge ( black )
Certified for Windows Vista Certified for Windows Vista software and devices have undergone compatibility tests for ease-of-use, better performance and enhanced security.
Compliant Standards FCC Class B certified, CE, UL, CE-LVD, cUL, EN 61000-3-2, ICES-003, NOM, EN 61000-3-3, EN55024, CISPR 22, EN55022 Class B, FCC Part 15 B, EMC, Laser Class 1, FCC CFR47 Part 15, UL 60950-1, CSA C22.2 No.-1-03, GB 17625.1
Power
Power Device Power supply - internal
Voltage Required AC 120 V
Frequency Required 50/60 Hz
Power Consumption Operational 600 Watt
Power Consumption Stand by / Sleep 27 Watt
Software / System Requirements
Software Included Drivers & Utilities
OS Required HP-UX, Novell NetWare, Linux, Microsoft Windows 2000, Microsoft Windows XP Home Edition, Microsoft Windows XP Professional, Microsoft Windows Server 2003, Apple MacOS X 10.3, Apple MacOS X 10.2.8, Microsoft Windows 7, Apple MacOS X 10.4, Microsoft Windows Vista, Apple MacOS X 10.6, Apple MacOS X 10.5
System Requirements Details Windows Vista - 1 GHz - RAM 512 MB Windows 2000 - 133 MHz - RAM 64 MB - HD 20 MB Windows XP - 233 MHz - RAM 64 MB Windows Server 2003 - 550 MHz - RAM 128 MB MacOS X 10.2.x or later - PowerPC G3 - RAM 128 MB - HD 160 MB
Environmental Standards
ENERGY STAR Qualified Yes
Manufacturer Warranty
Service & Support 1 year warranty
Service & Support Details Limited warranty - 1 year - on-site - response time: next business day
Environmental Parameters
Min Operating Temperature 50 °F
Max Operating Temperature 89.6 °F
Humidity Range Operating 20 - 80% (non-condensing)
Sound Emission (Idle) 31 dBA
Sound Emission (Operating) 54 dBA
