Product Overview

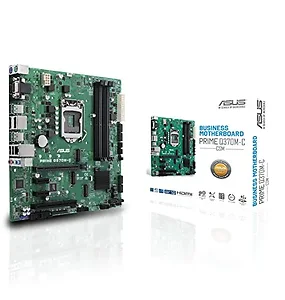

ASUS Prime Q370M-C/CSM LGA1151 (300 Series) DDR4 DP HDMI VGA SATA 6Gb/s USB 3.1 Gen2 microATX CSM Motherboard. Ready for 8th generation Intel Core processors, the Prime Q370M-C/CSM is built for security and stability with an enhanced management suite for a self-recovering BIOS and event log. The ASUS debug header allows for more efficient troubleshooting to streamline system management. Maximize your business investment with the ASUS CSM series
Technical Specifications
CPU
Intel for 8th Generation CoreTM CoreTM i7/CoreTM i5/CoreTM i3/Pentium/Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0
The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
Refer to www.asus.com for CPU support list Chipset
Intel Q370
Memory
4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Supports Intel Extreme Memory Profile (XMP)
Hyper DIMM support is subject to the physical characteristics of individual CPUs.
Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
The maximum memory frequency supported varies by processor.
DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel 8th Gen. 6-core or higher processors.
Graphic
Integrated Graphics Processor- Intel HD Graphics support
Multi-VGA output support : HDMI/RGB/DisplayPort ports
- Supports HDMI with max. resolution 4096 x 2160 at 24 Hz / 2560 x 1600 at 60 Hz
- Supports RGB with max. resolution 1920 x 1200 at 60 Hz
- Supports DisplayPort with max. resolution 4096 x 2304 at 60 Hz
Maximum shared memory of 1024 MB (for iGPU exclusively)
Supports Intel InTruTM 3D, Quick Sync Video, Clear Video HD Technology, InsiderTM
Supports up to 3 displays simultaneously Expansion Slots
1 x PCIe 3.0/2.0 x16
2 x PCIe 3.0/2.0 x1
1 x PCI Storage
Intel Q370 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA and PCIE mode)
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (x4 PCIE mode)
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel OptaneTM Memory Ready LAN
Intel I219LM, 1 x Gigabit LAN Controller(s)
Audio
Realtek ALC887 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Front Panel Jack-retasking USB Ports
Intel Q370 Chipset :
4 x USB 3.1 Gen 2 port(s) (4 at back panel, , Type-A, 0 at mid-board)
Intel Q370 Chipset :
4 x USB 3.1 Gen 1 port(s) (2 at mid-board)
Intel Q370 Chipset :
4 x USB 2.0 port(s) (2 at back panel, , Type-A, 2 at mid-board) Special Features
TPM IC Onboard
Bespoke Motherboard Design and Business Focused Features :
- ASUS Self Recovering BIOS: Automatically recover BIOS update once crash happen
- ASUS Event Log: Record activities of system and provides information in BIOS
- ASUS Commercial BIOS kit: Speed up BIOS update solutionby partial BIOS design
- Anti-Moisture: Against moisture and corrosion prolonging the life of your motherboard
- 24/7 Reliability: Tested under temperature up to 45oC and humidity up to 80% to ensure handle diverse environment
Easy Assembly Design:
- Fixed-position and Color-coded Connectors: Enable easy identification and cable-matching, speeding up the production line
- Box Headers: USB headers are box style, enabling fast connector installation and preventing pin damage
Digi+VRM Operating System Support
Windows 10
Back I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x D-Sub
2 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.1 Gen 2 Type-A
2 x USB 2.0
3 x Audio jack(s) Internal I/O Ports
1 x MONO out header
2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA and PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)
1 x LPT header
2 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s)
1 x Chassis Intrusion connector(s)
1 x M.2 Socket 1 with E key, type 2230 for Wi-Fi/BT devices support or PCIE/USB mode
1 x LPC Debug header Accessories
Users manual
I/O Shield
2 x SATA 6Gb/s cable(s)
3 x M.2 Screw Package
1 x Supporting DVD
BIOS
192Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS smart recovering BIOS, ASUS Event log, ASUS Commercial Kit Manageability
WOL, PXE
Support Disc
Watch dog timer, Drivers
Form Factor
uATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) Note
1: Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
2: Use with amplified speaker is suggested. Item Dimension ( L inch x W inch x H inch)
11 x 11 x 3
