Product Overview

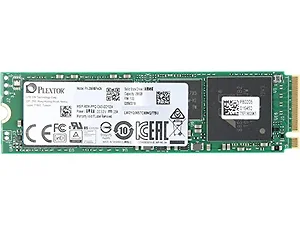

FeaturesM9PeGN 256GB M.2 2280 PCI-Express 3.0 x4 Solid State DriveEasy to UseSpecificationsCapacity: 256 GBForm Factor: M.2 2280Interface: M.2 PCI-Express 3.0 x4 with NVM ExpressNAND Flash: 3D TLCController: Marvell 88ss1093Cache: 512MB LPDDR3Sequential Read Speed: Up to 3,000 MB/sSequential Write Speed: Up to 1,000 MB/sRandom Read Speed: Up to 180,000 IOPSRandom Write Speed: Up to 160,000 IOPSPower Requirement: DC 3.3V 2.5A (Max)Power: M.2 connector for DC 3.3V inputData: M.2 connectorOperating System Supported: Microsoft Windows 8.1, 10/ Linux OSWeight: 0.1 lbs- SKU: MBPSCAFBAG6319
Technical Specifications
Specification
Model
PX-256M9PeGN
Capacity
256 GB
Cache
512 MB LPDDR3
Controller
Marvell 88SS1093
NAND Flash
TOSHIBA BiCS3 3D TLC
Performance (Under Windows NTFS)
Sequential Read Speed (MB/s)
Up to 3,000
Sequential Write Speed (MB/s)
Up to 1,000
Random Read Speed (IOPS)
Up to 180,000
Random Write Speed (IOPS)
Up to 160,000
Environment and Reliability
Power Requirement
DC 3.3V 2.5A (Max.)
Temperature
0oC to 70oC / 32oF to 158oF (Operating)
MTBF
>1,500,000 Hours
Endurance (TBW)
160
Compatibility
Operating System
Microsoft Windows 8.1, 10/ Linux OS
Supported
UL, TUV, FCC, CE, BSMI, VCCI, RCM, KCC, EAC, ROHS, WHQL
Agency Approval
TRIM, S.M.A.R.T, IO queue, NVMe command
Command Set Support
M.2 PCIe Gen 3 x 4 with NVM Express
Interface
Supported
Form Factor and Connectors
Form Factor
M.2 2280
Power Connector
M.2 connector for DC 3.3V input
Data Connector
M.2 Connector
Package Content
Drive
256GB SSD
Item Dimension (L"xW"xH")
4 x 1 x 1
Weight
1.00 LB
Warranty Information
5 Years
