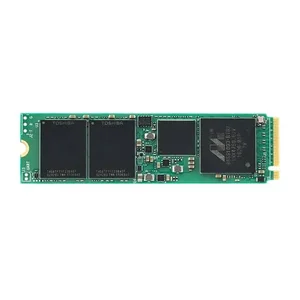

Plextor PX-256M9PEGN M9PeGN 256GB M.2 2280 PCI-Express 3.0 x4 Solid State Drive (TLC)

SpecificationS

• Mfr Part Number: PX-256M9PEGN
• Capacity: 256 GB
• Form Factor: M.2 2280
• Interface: M.2 PCI-Express 3.0 x4 with NVM Express
• NAND Flash: 3D TLC
• Controller: Marvell 88ss1093
• Cache: 512MB LPDDR3
• Performance:
  • Sequential Read Speed: Up to 3,000 MB/s
  • Sequential Write Speed: Up to 1,000 MB/s
  • Random Read Speed: Up to 180,000 IOPS
  • Random Write Speed: Up to 160,000 IOPS
• MTBF: >1,500,000 Hours
• Power Requirement: DC 3.3V 2.5A (Max)
• Connectors:
  • Power: M.2 connector for DC 3.3V input
  • Data: M.2 connector
• Operating System Supported: Microsoft Windows 8.1, 10/ Linux OS
• Certifications: UL, TUV, FCC, CE, BSMI, VCCI, RCM, KCC, EAC, ROHS, WHQL
• Dimensions (WxLxH): 22.0 x 80.0 x 2.3 mm / 0.87 x 3.15 x 0.09 inch
• Weight: 0.35 oz / 10.0 g (Max)
