Plextor PX-256M8VG+(CVB-8D256-06) M8vg Plus 256gb M.2 2280 Sata3 | Aztek Computers
Business, government & education accounts
SKU: BZ8BHBIUXJ |  Mfg. Part: PX-256M8VG+(CVB-8D256-06)  | UPC: 195060000036  |  0 Reviews  |     Share

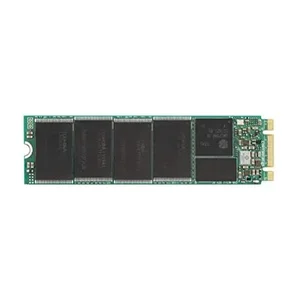

Plextor PX-256M8VG+(CVB-8D256-06) M8vg Plus 256gb M.2 2280 Sata3 Ssd With 3d Tlc

Special Order
Ships in 1-2 weeks
Condition: New

$82.55  $111.44
Need 10+? Request a volume quote
 Free Shipping for this Item

Product Overview

The Plextor M8VG Plus Series Solid State Drive offers high-performance storage with its 256GB capacity. Designed for M.2 2280 slots, it utilizes SATA3 connectivity for fast data transfer speeds. This SSD features advanced 3D TLC NAND technology and a reliable SMI SM2258 controller, ensuring durability and efficiency for your computing needs.

Technical Specifications

Specifications

  • Capacity: 256GB
  • Form Factor: M.2 2280
  • Interface: SATA 6.0Gb/s, backward compatible with SATA 3 Gb/s / 1.5 Gb/s
  • NAND Flash: KIOXIA 96-layer 3D TLC
  • Controller: SMI SM2258
  • Cache: 512 MB DDR3
  • Performance:
    • Sequential Read Speed: Up to 560 MB/s
    • Sequential Write Speed: Up to 510 MB/s
    • Random Read Speed: Up to 85,000 IOPS
    • Random Write Speed: Up to 84,000 IOPS
  • Power Requirement: DC 3.3V 1.5A (Max.)
  • Operating Temperature: 0°C - 70°C / 32°F - 158°F
  • Shock Resistance: 1500G (Max.), at 0.5 msec half-sine
  • Vibration Resistance: 2.0Grms (Operating)
  • MTBF: 2,500,000 Hours
  • Endurance: 140 TBW
  • Connectors:
    • Power: M.2 connector for DC 3.3V input
    • Data: M.2 Connector
  • Operating System: Microsoft Windows OS / Linux OS / Mac OS
  • Certifications: UL, TUL, FCC, CE, BSMI, VCCI, RCM, KCC, EAC, ROHS, WHQL
  • Command Set Support: TRIM, S.M.A.R.T, IO queue, NVMe command
  • Firmware Upgrade: Supported
  • Dimensions (LxWxH): 80.00 x 22.00 x 2.30mm / 3.15 x 0.87 x 0.09 inch
  • Weight: 10g / 0.35oz (Max.)
  • Warranty: 3 years

Product Details

  • Manufacturer:
  • Model Number:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Plextor
  • PX-256M8VG+(CVB-8D256-06)
  • 195060000036
  • New
  • 0.1 lbs
  • 12 X 8 X 9
  • Nov 01, 2026
  • Jan 06, 2021
Product Identifiers: Brand: Plextor • Part #: PX-256M8VG+(CVB-8D256-06) • UPC: 195060000036 • Category: Solid State Drives
