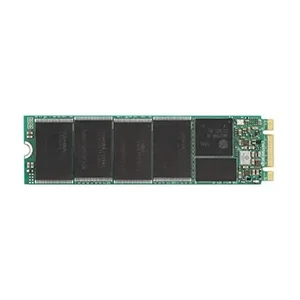

Product Overview
SpecificationsCapacity: 128GBForm Factor: M.2 2280Interface: SATA 6Gb/s, compatible with SATA 3.0 / 1.5Gb/sNAND Flash: Toshiba BiCS3 3D TLCController: SMI SM2258Cache: 256MB DDR3Sequential Read Rate: Up to 560 MB/sSequential Write Rate: Up to 400 MB/sRandom Read Rate: Up to 60,000 IOPSRandom Write Rate: Up to 70,000 IOPSShock: 1500G (Max) @ 1 msec half-sineVibration: 7 - 800Hz, 3.08Grms (Operation)MTBF: 1,500,000 HoursDC Requirement: DC 3.3V / 2.0A (Max)Power Connectors: M.2 connector for DC 3.3V inputData Connectors: M.2 ConnectorOperating System Supported: Microsoft Windows OS/ Linux OSAgency Approval: UL, TUV, FCC, CE, BSMI, VCCI, RCM, KCC, EAC, ROHS, WHQLDimension: 0.09 H x 0.87 W x 3.15 L in.Weight: 0.02 lbs- SKU: MBPSCAFBAG6485
Technical Specifications
Specification
Model
PX-128M8VG Capacity
128 GB Cache
256 MB DDR3 Controller
SMI SM2258 NAND Flash
Toshiba BiCS3 3D TLC Performance (Under Windows NTFS)
Sequential Read Speed (MB/s)
Up to 560 Sequnetial Write Speed (MB/s)
Up to 400 Random Read Speed (IOPS)
Up to 60,000 Random Write Speed (IOPS)
Up to 70,000 Environment and Reliability
Power Requirement
DC 3.3V 2.0A (Max.) Temperature
0oC to 70oC / 32oF to 158oF (Operating) Shock
1500G (Max.), at 1 msec half-sine Vibration
7 to 800Hz, 3.08Grms (Operating) MTBF
1,500,000 Hours Endurance (TBW)
70 Compatibility
Operating System Supported
Microsoft Windows OS / Linux OS / Mac OS Angency Approval
UL, TUV, FCC, CE, BSMI, VCCI, RCM, KCC, EAC, ROHS, WHQL Command Set support
TRIM, S.M.A.R.T, NCQ, ATA/ATAPI-8 Interface
SATA 6.0 Gb/s, compatible with SATA 3.0/1.5Gb/s Firmware Upgrade
Supported
