Technical Specifications
PW9130L 1500R-XL2U 9130 1500 120V RACK NTWK-MS
Combining superior performance with innovative features, the Eaton𘌿 UPS is the ultimate model in the 5 to 6 kVA power range. Incorporating more than 40 years of UPS expertise, the 9135 UPS delivers superior power protection for medium-density data centers, banking and security systems, manufacturing process control, retail point-of-sale systems and telecommunications/VoIP equipment. With its rugged design, the 9135 UPS regulates both voltage and frequency to provide the highest grade of UPS protection available. The 9135 UPS eliminates all types of utility power problems to supply clean, continuous power to connected equipment. The 9135 UPS is part of the Powerware series. This virtualization-ready bundle includes a network card and management software in one convenient package.

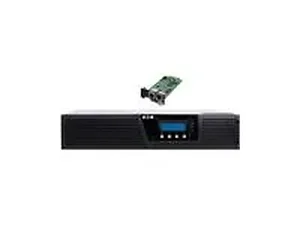

Eaton Virtualization-ready UPS bundle - UPS ( rack-mountable ) - AC 120 V - 1.35 kW - 1500 VA - Ethernet, RS-232, USB - 6 output connector(s) - 2U
*
MAIN SPECIFICATIONS
Product Description Eaton Virtualization-ready UPS bundle - UPS - 1.35 kW - 1500 VA
Device Type UPS - rack-mountable
Rack Size 2U
Dimensions (WxDxH) 17.3 in x 16.9 in x 3.4 in
Weight 43 lbs
Input Voltage AC 120 V
Output Voltage AC 120 V ( 50/60 Hz )
Power Capacity 1.35 kW / 1500 VA
Output connector(s) 6 x power NEMA 5-15
Networking Ethernet, RS-232, USB
Included Accessories Network Card-MS
Manufacturer Warranty 2 years warranty
General
Device Type UPS - rack-mountable
Height (Rack Units) 2U
Width 17.3 in
Depth 16.9 in
Height 3.4 in
Weight 43 lbs
Enclosure Color Black
Power Device
UPS Technology On-line
Input Voltage AC 120 V
Input Voltage Range AC 90 - 138 V
Frequency Required 45 - 65 Hz
Input Connector(s) 1 x power NEMA 5-15
Output Voltage AC 120 V ( 50/60 Hz )
Power Output Connectors Details 6 x power NEMA 5-15
Power Capacity 1.35 kW / 1500 VA
Surge Suppression Standard
Circuit Protection Circuit breaker
Networking
Remote Management Interface Ethernet, RS-232, USB
Expansion / Connectivity
Interfaces[ x management - RS-232 1 x management - USB 1 x management - Ethernet 10Base-T/100Base-TX - RJ-45
Expansion Slot(s) 1 expansion slot
Miscellaneous
Included Accessories Network Card-MS
Cables Included[ x USB cable - external 1 x power cable - 6 ft
Rack Mounting Kit Included
Features LCD display, internal bypass, LED indicators, automatic self-test, Remote Emergency Power Off (REPO)
Compliant Standards FCC Class B certified, UL, VCCI, cUL, EN55022 Class B, RoHS
Software / System Requirements
Software Included Power Management Software Suite, Intelligent Power Software Suite
Manufacturer Warranty
Service & Support 2 years warranty
Service & Support Details Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 5 - 90% (non-condensing)
Sound Emission 50 dB
