Technical Specifications
9130 3000 230V RM OL C14 IN/ 8XC13 1XC19 OUT
The Eaton 9130 UPS eliminates all types of utility power problems to supply clean, continuous power to connected equipment. With its rugged design, the 9130 UPS regulates both voltage and frequency to provide the highest grade of UPS protection available. Incorporating more than 40 years of UPS expertise, the 9130 UPS delivers essential power protection for rack-based IT and networking data center equipment, medical systems and manufacturing process control. It is also ideal for PBX and VoIP telecommunication equipment. The 9130 UPS is part of the Powerware series.

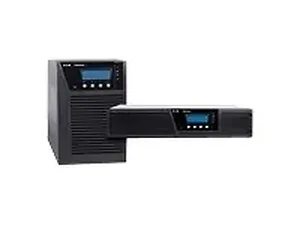

Product Description Eaton PW9130i3000R-XL2U - UPS - 2.7 kW - 3000 VA
Device Type UPS - rack-mountable
Rack Size 2U
Dimensions (WxDxH) 17.2 in x 23.6 in x 3.4 in
Weight 68.1 lbs
Input Voltage AC 230 V
Output Voltage ± 3%
Power Provided 2.7 kW / 3000 VA
Output connector(s) 9 x power IEC 320 EN 60320 C13, power IEC 320 EN 60320 C19
Battery Lead acid 9 Ah
Battery Form Factor Internal
Run Time (Up To) 3 min at full load
Networking RS-232, USB
General
Device Type UPS - rack-mountable
Battery Enclosure Type Internal
Height (Rack Units) 2U
Width 17.2 in
Depth 23.6 in
Height 3.4 in
Weight 68.1 lbs
Power Device
UPS Technology On-line
Input Voltage AC 230 V
Input Voltage Range AC 160 - 276 V
Frequency Required 50/60 Hz
Input Connector(s) 1 x power IEC 320 EN 60320 C20
Output Voltage ± 3%
Output connector(s) 9 x power IEC 320 EN 60320 C13, power IEC 320 EN 60320 C19
Power Output Connectors Details[ x power IEC 320 EN 60320 C19 8 x power IEC 320 EN 60320 C13
Power Provided 2.7 kW / 3000 VA
Battery
Technology Lead acid
Voltage Provided 12 V
Capacity 9 Ah
Run Time (Up To) 3 min at full load
Networking
Remote Management Interface RS-232, USB
Expansion / Connectivity
Interfaces[ x management - RS-232 1 x management - USB
Miscellaneous
Rack Mounting Kit Included
Features LCD display, LED indicators
Software / System Requirements
Software Included Drivers
