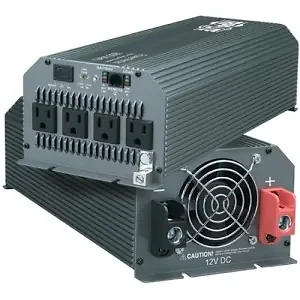

PV1000HF - Tripp Lite 1, 000-watt-continuous Powerverter Compact Inverter For Trucks TRPPV1000HF

Allows users to run AC appliances from any properly-sized 12V battery or automotive DC system
Converts 12V DC battery power to 120V AC power
1000 watts continuous output power 2000 watts peak output power(instantaneous)
4 outlets
Compact, lightweight design with all-metal housing
Remote control jack provides optional remote monitoring and control when used with optional remote module(APSRM4, sold separately)
Low battery alarm with auto-shutoff prevents deep battery discharge
High-efficiency operation conserves batteries to prolong run time Battery charge level LEDs indicate the approximate charge level(high/medium/low) of connected batteries
Connected load level LEDs indicate the approximate wattage load level(high/medium/low) of connected equipment
Operating mode switch controls inverter operation
Battery Charge Conservation Dial conserves battery power by setting the load-level at which the inverter automatically shuts off
Cooling fan regulates internal temperature and prolongs service life
Mounting flanges provide safe, fixed installation
Grounding lug connects to vehicle ground
Grooved cooling surface provides additional surface area for more efficient cooling Continuous Output Capacity (Watts)
1000 Output Receptacles
(4) 5-15R Output Nominal Voltage
120V Voltage Compatibility (VDC)
12 Frequency Compatibility
60 Hz Output Receptacles
(4) 5-15R Output (Watts)
1000 Continuous Output Capacity (Watts)
1000 Peak Output Capacity (Watts)
2000 Output Nominal Voltage
120V Output Voltage Regulation
Maintains PWM sine wave output voltage of 115 VAC (+/- 10% VAC) Output Frequency Regulation
60 Hz (+/- 5% Hz) Overload Protection
Automatic overload protection shuts down inverter system in the event of overloads. Inverter and electrical system are further protected via four internal 40A automotive fuses Pure Sine Wave Output
No INPUT
Recommended Electrical Service
Requires 12V DC input source capable of delivering 100A for the required duration (when used at full capacity). For automotive applications, hardwire installation with 175A battery system fusing is recommended.
Maximum Input Amps / Watts
Full continuous load - 100A at 12V DC, No load - 1.5A at 12V DC, Shutdown / load sense mode - 100 micro amps
Input Connection Type
Set of 2 DC bolt-down wiring terminals
Input Cord Length Details
User supplies cabling. Minimum gauges for full load operation: 4 wire (12 ft max), 2 wire (20 ft max), 0 wire (31 ft max).
Voltage Compatibility (VDC)
12 BATTERY
DC System Voltage (VDC)
12 USER INTERFACE, ALERTS CONTROLS
Front Panel LEDs
Set of 6 LEDs offer continuous status information on battery and connected load conditions
Switches
3 position rocker switch enables on/off power control, plus "remote" setting which enables inverter to be remotely powered on or off when used in conjunction with APSRM4 Remote Control Module(sold separately)
Audible Alarm
Dual function alarm indicates overload conditions or low DC input voltage of 10.5V or less SPECIAL FEATURES
Remote Control Capability
Yes
