PSS PRO Shaft Seal for 2" Shaft & 3.5" Tube

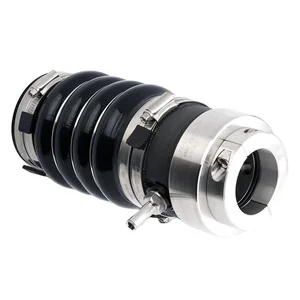

The PSS PRO Shaft Seal is designed for superior performance in demanding marine environments. This mechanical face seal features durable stainless steel and carbon components, reinforced silicone bellow, and essential external rings for sizes over 2-1/4". With a secondary shaft retention collar and high-quality 316 stainless steel hose clamps, it ensures reliable operation under high pressure. For increased protection, an optional Nitronic 50 rotor upgrade is available, tailored for corrosive environments.

Providing exceptional durability, the PRO Shaft Seal compensates for axial movement due to propeller thrust and enhances alignment handling with a floating carbon flange. This innovative design eliminates wear between the components during operation, making it a dependable choice for various marine applications.

Specifications:

• Temperature Limits: -13�F to 425�F (-25�C to 220�C)
• Pressure Limits: 40 PSI (2.75 BAR)
• Shaft RPM Limits: Up to 10,000 RPM
• Carbon Graphite: Lapped to 4 HLB (0.000044" tolerance)
• 316SS / Nitronic 50: Faced to 9 Ra
• Bellow Material: Molded silicone with fabric reinforcement

Product Dimensions:

• Shaft Diameter: 2"
• Stern Tube Diameter: 3.5" to 3.625" (3-5/8")
• Uncompressed Length: 9.268"
• Approx. Compressed Length: 8.268"
• Rotor Diameter: 3.75"
• Stern Cuff Length: 1.3"

The PSS PRO Shaft Seal is a mechanical face seal engineered for marine environments. It is designed to provide reliable sealing for propeller shafts, accommodating a 2-inch shaft diameter and a stern tube diameter ranging from 3.5 to 3.625 inches. This component is suitable for applications requiring robust performance under pressure, with a limit of 40 PSI, and can operate effectively with shaft speeds up to 10,000 RPM. Its construction includes durable stainless steel and carbon components, a reinforced silicone bellow, and 316 stainless steel hose clamps. The seal's design allows for self-compensation of axial movement, which helps maintain alignment and reduces wear between components during operation. An optional Nitronic 50 rotor upgrade is available for enhanced corrosion resistance in challenging environments. This product, part number 03-200-312, addresses the need for a durable and adaptable shaft sealing solution in demanding marine settings.
