03-200-300 - Pss Shaft Seal PSS PRO Shaft Seal for 2" Shaft & 3" Tube Applications

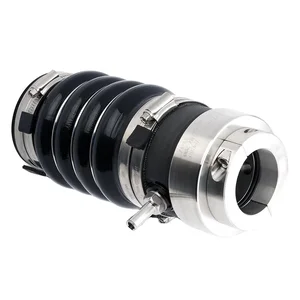

PSS PRO Shaft Seal for 2" Shaft & 3" Tube

The PSS PRO Shaft Seal is designed for maximum durability in harsh conditions, featuring a robust mechanical face seal with stainless steel and carbon components. Its reinforced silicone bellow provides enhanced resistance to corrosive environments. This advanced sealing solution includes external rings, a secondary shaft retention collar, and durable 316 stainless steel hose clamps, ensuring a secure fit. For applications that demand top performance, the optional Nitronic 50 rotor upgrade is available.

The sealing mechanism combines a stainless steel rotor and a stationary carbon flange to create an effective barrier against leaks, adapting to axial movements from propeller thrust while allowing for misalignment compensation. The design accommodates high RPMs, providing reliable operation under pressure.

Specifications:

• Temperature Range: -13�F to 425�F (-25�C to 220�C)
• Pressure Rating: 40 PSI (2.75 BAR)
• Shaft RPM Capability: Up to 10,000 RPM
• Carbon Graphite Precision: Lapped to 4 HLB (0.000044" tolerance)
• Material Finish: 316SS / Nitronic 50 faced to 9 Ra
• Bellow Composition: Molded silicone with fabric reinforcement

Product Dimensions:

• Shaft Diameter (A): 2"
• Stern Tube Diameter (B): 3" to 3-1/8"
• Uncompressed Length (C): 9.268"
• Approx. Compressed Length: 8.268"
• Rotor Diameter (D): 3.75"
• Stern Cuff Length (E): 1.3"

The PSS PRO Shaft Seal (part number 03-200-300) is a robust mechanical face seal engineered for demanding marine and industrial applications. It is designed for systems utilizing a 2-inch shaft and a 3-inch to 3-1/8-inch stern tube. This sealing solution features a durable construction with 316 stainless steel and carbon components, complemented by a reinforced silicone bellow for enhanced resistance to corrosive environments. It addresses the need for reliable sealing in high-pressure, high-RPM conditions, accommodating up to 10,000 RPM and pressures up to 40 PSI. The design effectively manages axial movements and compensates for misalignment, ensuring a secure barrier against leaks. Included components like external rings, a secondary shaft retention collar, and 316 stainless steel hose clamps facilitate a secure and stable installation.
