Incorporating various highquality components the Thermaltake Smart 80 PLUS 600W Power Supply saves energy for those looking to build their own machine This is a highefficiency unit running at up to 86 percent The Thermaltake power supply accommodates a mainstream build even with the most demanding requirements An embedded intelligent cooling fan delivers reliable airflow at an exceptionally low noise level so your computing experience is not disturbed Additionally the single 12V rail design enables nonstop usage with stable and reliable performance with no more explosion and leakage of the capacitor

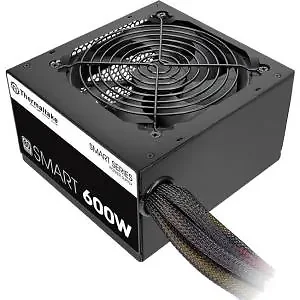

The Thermaltake Smart 600W ATX 12V Power Supply, part number PS-SPD-0600NPCWUS-W, is designed for business and IT professionals building or upgrading mainstream desktop systems. This unit provides a maximum output capacity of 600W and features Active PFC, operating with an efficiency range of 82-86% under 20-100% load. It adheres to the Intel ATX 12V 2.3 standard.
This power supply is suitable for environments requiring stable and reliable performance, accommodating demanding requirements for typical business workstations or custom builds. Its single 12V rail design contributes to consistent power delivery. An integrated 120mm fan manages cooling, designed to operate at low noise levels to minimize operational disturbance. The unit supports an input voltage range of 100Vac to 240Vac and includes two PCI-E 6+2pin connectors for graphics card compatibility.
Type
Intel ATX 12V 2.3
Max. Output Capacity
600W
Color
Black
PFC Power Factor Correction
Active PFC
Power Good Signal
100-500 msec
Hold Up Time
16msec (minimum) within 60% load
Input current
10A max
Input Frequency Range
50 Hz - 60 Hz
Input Voltage
100Vac - 240Vac
Operating Temperature
5 C to +40 C
Operating Humidity
20% to 85%,non-condensing
Operating Temperature
-40 to +55
Operating Humidity
10% to 95%, non-condensing
Cooling System
120mm Fan: 2400 R.P.M. 10%
Efficiency
82-86% efficiency 20-100% load
MTBF
100,000 hrs minimum
Safety Approval
CE/CB/TUV/ UL/ FCC
PCI-E Connector
PCI-E 6+2pin x 2
Item Dimension (L"xW"xH"):
8.9 x 7 x 4
Weight:
4.50lb
Warranty Infotmation
5 years
This power supply is compatible with systems adhering to the Intel ATX 12V 2.3 standard. It is designed for mainstream builds with typical desktop component requirements.
The Thermaltake Smart 600W Power Supply has an efficiency rating of 82-86% under 20-100% load, indicating energy savings during operation.
Yes, this power supply includes two PCI-E 6+2pin connectors, which are typically used for powering graphics cards.
This power supply has a Mean Time Between Failures (MTBF) of 100,000 hours minimum, indicating its designed operational longevity.
PS-SPD-0600NPCWUS-W - Thermaltake Power Supply PSSPD0600NPCWUSW Smart 600W ATX 12V Active PFC 80 PLUS Black Retail
