SKU: N926G1CU7K |  Mfg. Part: PS-IM500W  | UPC: 841106101365  |
 1 Reviews  |     Share

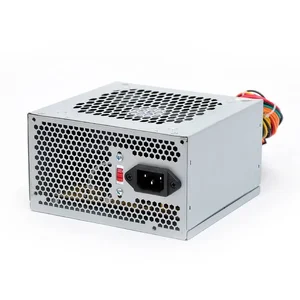

Imicro Electronics PS-IM500W iMicro 500W ATX Power Supply with 120mm Fan

Out of Stock
Condition: New

$52.73  $71.19
 Free Shipping for this Item

Product Overview

The iMicro 500W ATX Power Supply is designed to deliver reliable power to your computer system with high efficiency and stable performance. Featuring a powerful 120mm fan for effective cooling, this power supply supports both 115V and 230V voltage inputs, making it versatile for various setups. With multiple connectors available, including SATA and PCI-Express, it is equipped to meet the needs of modern hardware.

Technical Specifications

Specifications

  • Type: ATX 12V
  • Maximum Power: 500 W
  • Input Voltage: 115VAC (90~132VAC); 230VAC (180~264VAC)
  • Frequency Range: 47 ~ 63 Hz
  • Current: <75A at 115VAC Cold Start at 25°C
  • Efficiency: Min 73% at Full Load 115VAC/60Hz
  • Fan: 1x 120mm Fan (115V/230V switchover)
  • Output Current: +5V @ 22A; +12V1 @ 18A; +12V2 @ 18A; +3.3V @ 18A; +5VSB @ 2A; -12V @ 0.5A
  • Over Voltage Protection (OVP): +3.3V, +5V, +12V
  • Short Circuit Protection (SCP): All Output to GND
  • Turn on Time: Max 500ms
  • Hold up Time: Min 16ms
  • Connectors: 1x 20+4pin Main Power Connector, 1x 4pin EPS 12V Connector, 1x 6pin PCI-Express Connector, 3x SATA Connectors, 3x Molex Connectors, 1x Floppy Connector
  • Dimensions: 5.90 x 5.51 x 3.35 inch / 150.0 x 140.0 x 85.0 mm
  • Weight: 2.16 lbs

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • iMicro Electronics
  • PS-IM500W
  • B00JA1MXK0
  • 841106101365
  • New
  • 2.16 lbs
  • 5 X 5 X 5
  • Mar 07, 2026
  • Jul 23, 2019
Product Identifiers: Brand: Imicro Electronics • Part #: PS-IM500W • UPC: 841106101365 • ASIN: B00JA1MXK0 • Category: Monitor Supplies

Imicro Electronics PS-IM500W iMicro 500W ATX Power Supply with 120mm Fan

Reviews for Imicro Electronics PS-IM500W

$52.73
