Product Overview

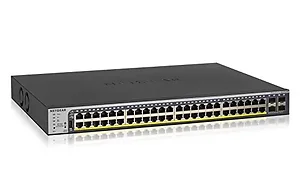

- ProSafe Gigabit PoE/PoE+ 48 Port Smart Managed Switch with 4 SFP Ports- Auto Voice VLAN and Auto Video VLAN help deploy VoIP systems and IP-based surveillance systems - Static routing helps to route internal traffic for more efficient use of network resources- Energy Efficient Ethernet (802.3az) support for more energy saving - Dynamic VLAN assignment for easy user authentication and location-independent access to network - 4 Dedicated SFP ports provide fiber uplinks and uplink redundancy/failover, improving reliability and availability for network virtualization - Total Ports: 52 - Gigabit Ethernet Ports: 48 RJ45 - PoE Ports: 8 802.3at PoE+, 40 802.3af PoE- SFP Ports: 4 - IEEE Protocols: 802.3, 802.3i/u/ab, 802.3ad, 802.3ae, 802.3x, 802.3az, 802.3z, 802.3at/af, 802.1D, 802.1w, 802.1s, 802.1x, 802.1p, 802.1Q, 802.1ab - LEDs: Speed, Link, Activity, Power Status, Fan Status, PoE Power Status - Max PoE Consumption: 384W - Bandwidth: 104 Gbps - Forwarding Modes: Store and forward - Buffer Packet Memory: 8 MB - Address Database Size: 8,000 - Mean time between failures (MTBF): 220,447 hours - Jumbo frame support up to 9k packet size - Number VLANs Supported: 256 - Priority Queues: 4 - IGMP Snooping v1/v2/v3 - MLD Snooping v1/v2 - DHCP Client - IPv4/IPv6 DSCP and TOS - L2 MAC, L3 IP, and L4 Port ACLs - SNMP v1/v2c/v3 - Port Mirroring - Cable Test utility - Security: 802.1x RADIUS Authentication, Guest VLAN, Network Storm Protection, Broadcast/Unicast/Multicast Protection - Package Contents: Gigabit Switch, power cord, rack-mounting kit, resource CD
Technical Specifications
SIMPLE SETUP - Setup and configure with easy-to-use web-browser based interfacePOWER-OVER-ETHERNET - 48 Gigabit PoE+ ports (802.3af and 802.3at) providing up to 30w per port with 380w total PoE power budgetFEATURE-RICH AND SECURE ? Advanced Smart features include Layer 3 static routing with 32 routes (IPv4 and IPv6) for interVLAN routing, Private VLANs and MVRCOMPREHENSIVE LAYER2 NETWORKING ? VLAN, QoS, IGMP Snooping, Rate limiting, LACP Link aggregation, STP, SNMP, and ACLProSAFE LIFETIME PROTECTION ? Lifetime Limited Hardware warranty, Next Business Day Replacement and 24/7 chat with a NETGEAR expertProduct Type Ethernet SwitchTotal Number of Network Ports 48Uplink Port YesModular YesStack Port NoPort/Expansion Slot Details 48 x Gigabit Ethernet Network 4 x Gigabit Ethernet Expansion SlotMedia Type Supported Twisted Pair Optical FiberEthernet Technology Gigabit EthernetNetwork Technology 10/100/1000Base-TX 1000Base-XNumber of Total Expansion Slots 4Expansion Slot Type SFP (mini-GBIC)Shared SFP Slot NoNumber of SFP Slots 4Layer Supported 2Manageable YesPower Source Power Supply Redundant Power Supply Supported NoForm Factor Rack-mountableHeight 1.7"Width 17.3"Depth 12.4"Weight (Approximate) 11.24lb
