1 Available / 1 Sold
Condition: New

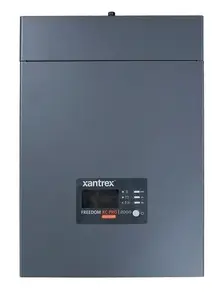

Xantrex Freedom XC Pro 2000 Watt Inverter, 100A Charger
Model: 818-2010The Freedom XC PRO inverter/charger, supporting RV-C and J1939 protocols, is the most versatile and flexible AC power solution in the market today. It also features a 100 amp battery charger and offers all of the configurable features of the Freedom XC series inverter/charger in a compact, light weight package. It cranks out full output in invert or charge mode from -4 degF (-20 degC) - 104 degF (40 degC) for operation in all climate temperatures. The extended surge rating enables compressor loads such as an A/C or a fridge to start reliably.
Specifications| 120, 110, 108 Vac | |
| Continuous Output Power | Continuous Power 2000 W @40oC True sine wave (TSW) |
| Continuous AC Output Current | 16.7A |
| Surge Power | 4000 W ( <=5 sec) |
| Frequency (Configurable) | 60 (or 50) Hz |
| Peak Efficiency | 91% |
| Full Load Efficiency | >= 86% |
| Operating Input AC Pass-Through Voltage Range | 85-140 Vac |
| Safe Non-Operating Input AC Voltage Range | Up to 240 Vac RMS |
| Power Factor at Full Charge Rate | > 98% |
| Battery Charger Specifications | |
| Min Battery Voltage for Charging | 0.0 Vdc |
| Max DC Output Voltage | 18.0 Vdc (custom battery type) |
| Selectable DC Output Current | User Selectable: 5 - 100 A |
| Full Load Max AC Input Current | 24 Arms |
| Max DC Charge Current | 10A |
| General Specifications | |
| Operating Temperature Range | 4 to 140 oF (-20 to 60 oC), with output derated above 104 oF (40 degC) |
| Storage Temperature Range | -40 to 158 oF (-40 to 70 oC) |
| Operating Humidity Range | 5 to 95% RH, non-condensing |
| Transfer Relay AC Current Rating | 30 A surge, 24 A continous |
| DC Input Operating voltage range | 10.1 - 18.0 VDC |
| DC Input Max Non-Operating Voltage | 25.2 Vdc |
| DC Input/Output Nominal Voltage (inverting/ Charging) | 12.0 Vdc |
| DC Nominal Current at Full Load | 192Adc |
| L x W x H (without flanges) | 5.4 in(390 mm) x 10.8 in(275 mm) x 4.9 in(125 mm) |
| L x W x H (with flanges) | 16.0 in(406 mm) x 12.0 in(305 mm) x 4.9 in(125 mm) |
Xantrex Llc 818-2010 Xantrex Freedom XC PRO 2000 2000W Inverter Charger 12vDC in 120vAC Out
