1 Available
Condition: New

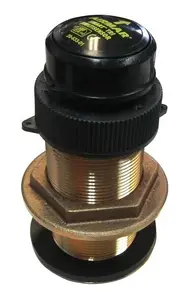

Furuno DT-800MSF Depth and temperature in one compact bronze housing
Model: DT-800MSFDesigned with Airmar's exclusive Broadband Ceramic Technology, the DT-800MSF's 235 kHz element improves resolution without sacrificing sensitivity. The higher power rating 100 W RMS provides spot-on depth readings in as little as 0.45 m (1.4 feet) of water and can reach depths up to 180 m (600 feet).
Specifications| 1.5 kg (3.4 lb) | |
| Data Update Rate | 1 per second |
| Minimum Sounding Depth | 0.5 m (1.6 feet) |
| Maximum Sounding Depth | 180 m (590 feet) |
| Pressure Rating | 3 m (10 feet) |
| Pulse Rate | 20,000 p/nm* (5.6 Hz per knot)-*p/nm = pulses per nautical mile |
| Smart Sensor Supply Voltage at 100% Sound Power Output | 10 VDC to 25 VDC |
| Supply Current | 40 mA S |
| tandard Cable Length | 6m |
| NMEA 2000(R) Load Equivalency Number (LEN) | 4 |
Furuno Usa Inc. DT-800MSF Furuno DT-800MSF Bronze TH NMEA2000 Depth And Temp
