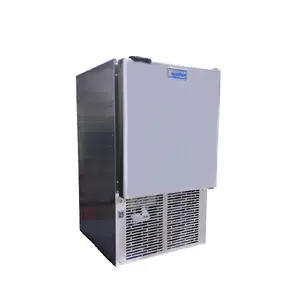

Raritan Engineering Co. 88B515-1 Raritan 88B515-1 Ice Maker Built-In Flange 120V

Raritan 88 Series Iceamaker Built-in Flange, Free Standing 120V

• Improved controls for more efficient operation.
• Cabinet and door built to last in harsh marine environments.
• Removable ice bucket stores up to 11 lbs of crescent ice (1/2 in W x 3/4 in H x 2-1/2 in L)
• No drain required makes it easy and inexpensive to install.
• Only requires a 1/4 in outside diameter water line.
• Does not require additional hinge clearance for door swing.
• Includes flange.
• No additional side space required for ventilation.
• Water Pressure Operating Range 20-120
• All ventilation from front, limited vent in back of unit. No additional clearance required around the sides.
• Adjustable rubber leveling feet
• Water supply Inlet size 1/4 in OD and requires 3/4 space behind the unit for clearance
• Water supply inlet located in lower right of rear opposite of the power cord
