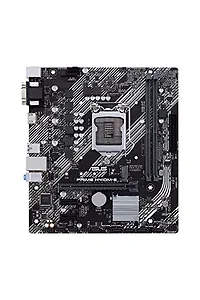

PRIME H410M-E - Asus PRIME H410ME 10G Motherboard

CPU
Intel Socket 1200 for 10^th Gen Intel Core^TM, Pentium Gold and Celeron Processors ^note1
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0^note2
Note:
1. Refer to www.asus.com for CPU support list
2. Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset
Intel H410 Memory
2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory ^note
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem
Note: 10th Gen Intel Core^TMi9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Graphic
Integrated Graphics Processor ^note
1 x D-Sub
1 x HDMI 1.4b
Note: Graphics specifications may vary between CPU types. Expansion Slots
Intel 10th Gen Processors
1 x PCIe 3.0 x16 (x16 mode)
Intel H410 Chipset
2 x PCIe 3.0 x1 Storage
Total supports 1 x M.2 slots and 4 x SATA 6Gb/s ports
Intel H410 Chipset :
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA and PCIE 3.0 X2 mode)^{Note 1}
4 x SATA 6Gb/s port(s) LAN
Realtek RTL8111H Audio
Realtek ALC887 7.1-Channel High Definition Audio CODEC ^{Note 2}
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
- LED-illuminated design
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors USB Ports
Rear USB Port ( Total 4 )
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 6 )
2 x USB 3.2 Gen 1 port(s)
4 x USB 2.0 port(s) Software Features
ASUS Exclusive Software
Armoury Crate
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert
- EZ update
ASUS CPU-Z
AI Charger
DAEMON Tools
Norton Anti-virus software (Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode ASUS Special Features
ASUS 5X PROTECTION III
- ASUS DIGI+ VRM
- ASUS LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot Core
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design Back I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 1 Type-A
2 x USB 2.0
3 x Audio jack(s) Internal I/O Ports
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA and PCIE 3.0 X2 mode)
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x Speaker connector Accessories
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Anchor
1 x Supporting DVD
User manual BIOS
128 Mb Flash ROM, UEFI AMI BIOS Manageability
WOL by PME, PXE Operating System
Windows 10 64-bit Form Factor
mATX Form Factor
8.9 inch x 8.0 inch ( 22.6 cm x 20.3 cm ) Note
1. When a device in SATA mode is installed on the M.2 socket, SATA6G_2 port cannot be used.
2. A chassis with an HD audio module in the front panel is required to support 7.1-channel audio output. Item Dimension (L inchxW inchxH inch)
11 x 11 x 3

Weight
3.00 LB

Warranty Information
3 Years
