ASUS PRIME H370-A/CSM LGA1151 H370-a/CSM LGA1151/300 Series

SKU: B59WKA374N |  Mfg. Part: PRIME H370-A/CSM  | UPC: 889349981702  |  0 Reviews  |  Share

Special Order
Ships in 1-2 weeks
Condition: New

$160.04  $216.05

AUTHORIZED
Need 10+? Request a volume quote
 Free Shipping for this Item

Product Overview

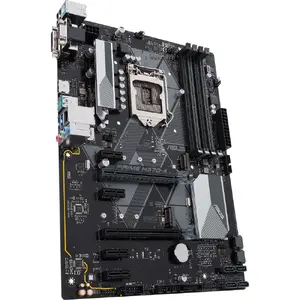

Intel LGA-1151 ATX motherboard with LED lighting, DDR4 2666MHz, dual M.2, Intel Optane memory ready, HDMI, SATA 6Gbps and USB 3.1 Gen 2

Technical Specifications

  • CPU: Intel Socket 1151 for 8th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors
  • Supports Intel 14 nm CPU
  • Supports Intel Turbo Boost Technology 2.0
  • Chipset: Intel H370
  • Memory: 4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
  • Dual Channel Memory Architecture
  • Supports Intel Extreme Memory Profile (XMP)
  • Graphic: Integrated Graphics Processor- Intel HD Graphics support
  • Multi-VGA output support: HDMI/DVI-D/D-Sub ports
  • - Supports HDMI 1.4b with max. resolution 4096 x 2160 at 24 Hz / 2560 x 1600 at 60 Hz
  • - Supports DVI-D with max. resolution 1920 x 1200 at 60 Hz
  • - Supports D-sub with max. resolution 1920 x 1200 at 60 Hz
  • Maximum shared memory of 1024 MB (for iGPU exclusively)
  • Supports Intel HD Graphics, InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
  • Supports up to 3 displays simultaneously
  • Multi-GPU Support: Supports AMD CrossFireX Technology
  • Expansion Slots: 1 x PCIe 3.0/2.0 x16 (x16 mode)
  • 1 x PCIe 3.0/2.0 x16 (max at x4 mode)
  • 4 x PCIe 3.0/2.0 x1
  • Storage: Intel H370 Chipset :
  • 1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (SATA PCIE 3.0 X2 mode)
  • 1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
  • 6 x SATA 6Gb/s port(s), gray
  • Support Raid 0, 1, 5, 10
  • Intel Optane Memory Ready
  • LAN: Realtek RTL8111H, 1 x Gigabit LAN Controller(s)
  • Audio: Realtek ALC887 8-Channel High Definition Audio CODEC
  • - Supports: Jack-detection, Front Panel Jack-retasking
  • Audio Feature :
  • - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
  • - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
  • - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
  • USB Ports: Intel H370 Chipset :
  • 2 x USB 3.1 Gen 2 up to 10Gbps port(s) (2 at back panel, teal blue, Type-A)
  • Intel H370 Chipset :
  • 6 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 4 at mid-board)
  • Intel H370 Chipset :
  • 6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)
  • Special Features: ASUS 5X Protection III :
  • - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
  • - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges
  • - ASUS Overvoltage Protection: World-class circuit-protecting power design
  • - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability
  • - ASUS DIGI+ VRM: 6 Phase digital power design
  • ASUS OptiMem :
  • - Optimem (Improved DDR4 stability)
  • ASUS EPU :
  • - EPU
  • ASUS Exclusive Features :
  • - AI Suite 3
  • - Ai Charger
  • - PC Cleaner
  • - File Transfer
  • ASUS Quiet Thermal Solution :
  • - Stylish Fanless Design Heat-sink solution and MOS Heatsink
  • - ASUS Fan Xpert 2+
  • ASUS EZ DIY :
  • - ASUS CrashFree BIOS 3
  • - ASUS EZ Flash 3
  • - ASUS UEFI BIOS EZ Mode
  • ASUS Q-Design :
  • - ASUS Q-Slot
  • - ASUS Q-DIMM
  • M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)
  • Back I/O Ports: 1 x PS/2 keyboard/mouse combo port(s)
  • 1 x DVI-D
  • 1 x D-Sub
  • 1 x HDMI
  • 1 x LAN (RJ45) port(s)
  • 2 x USB 3.1 Gen 2 (teal blue)up to 10Gbps
  • 2 x USB 3.1 Gen 1 (blue) up to 5Gbps,
  • 2 x USB 2.0
  • 3 x Audio jack(s)
  • Internal I/O Ports: 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin)
  • 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  • 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA and PCIE 3.0 X2 mode)
  • 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
  • 1 x TPM header
  • 6 x SATA 6Gb/s connector(s)
  • 1 x CPU Fan connector(s) (1 x 4 -pin)
  • 3 x Chassis Fan connector(s) (1 x 4 -pin)
  • 1 x S/PDIF out header(s)
  • 1 x 24-pin EATX Power connector(s)
  • 1 x 8-pin ATX 12V Power connector(s)
  • 1 x Front panel audio connector(s) (AAFP)
  • 1 x System panel(s) (Chassis intrusion header is inbuilt)
  • 1 x Clear CMOS jumper(s)
  • 1 x COM port header
  • 1 x Mono Out header
  • Accessories: Users manual
  • I/O Shield
  • 2 x SATA 6Gb/s cable(s)
  • 2 x M.2 screws
  • 1 x SCD (by region)
  • 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
  • Manageability: WOL by PME, PXE
  • Support Disc: Drivers
  • ASUS Utilities
  • ASUS EZ Update
  • Anti-virus software (OEM version)
  • Operating System: Windows 10 64-bit
  • Form Factor: ATX Form Factor
  • 12.0 inch x 8.7 inch ( 30.5 cm x 22.1 cm )
  • Item Dimension (L"xW"xH"): 11 x 13 x 3
  • Weight: 3 lbs
  • Warranty Information: 3 Years

Product Details

  • Manufacturer:
  • Model Number:
  • UPC:
  • Condition:
  • Shipping Weight:
  • Category:
  • Date First Available:
  • ASUS
  • PRIME H370-A/CSM
  • 889349981702
  • New
  • 2.6 lbs
  • Memory (RAM)
  • December 30, 2025
