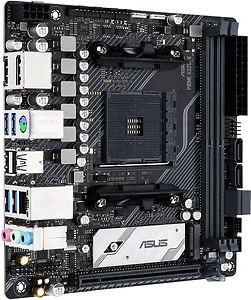

Asus PRIME A320I-K/CSM PRIME A320I-K Socket AM4/ AMD A320/ DDR4/ SATA3&USB3.1/ M.2/ A&GbE/ DP/ HDMI/ Mini-ITX Motherboar

Specifications

• Mfr Part Number: PRIME A320I-K/CSM

• CPU:
  • AMD AM4 Socket AMD Ryzen 2nd Generation/Ryzen with Radeon Vega Graphics/Athlon with Radeon Vega Graphics/Ryzen 1st Generation/7th Generation A-series/Athlon X4 Processors
  • Supports CPU up to 8 cores
• Chipset: AMD A320
• Memory:
  • AMD Ryzen 2nd Generation Processors
    - 2 x DIMM, Max. 32GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
  • AMD Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation Processors
    - 2 x DIMM, Max. 32GB, DDR4 3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
  • AMD 7th Generation A-series/Athlon Processors
    - 2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
    - Dual Channel Memory Architecture
• Graphic:
  • Integrated Graphics in the AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics/ 7th Generation A-Series APU
  • Multi-VGA output support : HDMI/DisplayPort ports
    - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
    - Supports DisplayPort with max. resolution 4096 x 2160 @ 60 Hz
  • Maximum shared memory of 2048 MB (for iGPU exclusively)
• Expansion Slot:
  • AMD Ryzen 2nd Generation/ Ryzen 1st Generation Processors
    - 1 x PCIe 3.0/2.0 x16 (x16 mode)
  • AMD Ryzen with Radeon Vega Graphics /7th Generation A-Series/Athlon X4 Processors
    - 1 x PCIe 3.0/2.0 x16 (x8 mode)
  • AMD Athlon with Radeon Vega Graphics Processors
    - 1 x PCIe 3.0/2.0 x16 (x4 mode)
• Storage:
  • AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation Processors :
    - 1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support(both PCIE 2.0 x4 & SATA mode)
  • AMD 7th Generation A-Series/ Athlon X4 Processors :
    - 1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (SATA mode)
  • AMD Athlon with Radeon Vega Graphics Processors :
    - 1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (SATA mode)
  • AMD A320 chipset :
    - 4 x SATA 6Gb/s port(s), gray,
    - Support Raid 0, 1, 10
• LAN:
  • Realtek RTL8111H, 1 x Gigabit LAN Controller(s)
  • ASUS LAN Guard
• Audio:
  • Realtek ALC887 8-Channel High Definition Audio CODEC
    - Supports : Jack-detection, Front Panel Jack-retasking
  • Audio Feature :
    - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
    - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
    - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
    * Choose the chassis with HD audio module in front panel to support 8-channel audio output.
• USB Ports:
  • AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics/ Ryzen 1st Generation/ 7th Generation A-Series/ Athlon X4 Processors :
    - 4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue)
  • AMD A320 chipset :
    - 2 x USB 3.0 port(s) (2 at mid-board)
  • AMD A320 chipset :
    - 4 x USB 2.0 port(s) (2 at back panel, black, 2 at mid-board)
• Special Features:
  • ASUS 5X Protection III :
    - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
    - ASUS Overvoltage Protection: World-class circuit-protecting power design
    - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
    - ASUS DIGI+ VRM: Premium components provide better power efficiency
    - ASUS ESD Guards - Enhanced ESD protection
  • ASUS EPU :
    - EPU
  • AURA :
    - Aura Lighting Control
    - Aura RGB Strip Headers
  • ASUS Exclusive Features :
    - AI Suite 3
    - Ai Charger
  • ASUS Quiet Thermal Solution :
    - Stylish Fanless Design Heat-sink solution
    - ASUS Fan Xpert 2+
  • ASUS EZ DIY :
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
  • ASUS Q-Design :
    - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
    - ASUS Q-Slot
    - ASUS Q-DIMM
• Back I/O Ports:
  • 1 x PS/2 keyboard/mouse combo port(s)
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x LAN (RJ45) port(s)
  • 4 x USB 3.1 Gen 1 (blue)
  • 2 x USB 2.0
  • 3 x Audio jack(s)
• Internal I/O Ports:
  • 2 x Aura RGB Strip Headers
  • 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
  • 1 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  • 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
  • 1 x TPM header
  • 4 x SATA 6Gb/s connector(s)
  • 1 x CPU Fan connector(s)
  • 1 x CPU OPT Fan connector(s) (1 x 4 -pin)
  • 2 x Chassis Fan connector(s) (1 x 4 -pin)
  • 1 x 24-pin EATX Power connector(s)
  • 1 x 8-pin ATX 12V Power connector(s)
  • 1 x Front panel audio connector(s) (AAFP)
  • 1 x System panel(s)
  • 1 x Clear CMOS jumper(s)
• Accessories:
  • User's manual
  • I/O Shield
  • 2 x SATA 6Gb/s cable(s)
  • 1 x M.2 Screw Package
  • 1 x Supporting DVD
  • 1 x M.2 bracket
• BIOS: 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information.
• Operating System: Windows 10 64-bit
• Form Factor:
  • Mini ITX Form Factor
    6.7 inch x 6.7 inch ( 17 cm x 17 cm )
