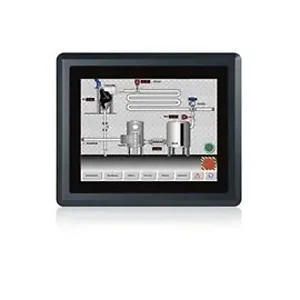

Iei Technology PPC-F08B-BT-J1/2G/R-R10 IEI System PPC-F08B-BT-J1/2G/R-R10 8 inch Celeron J1900 2GB DDR3L Touch Black Ret

Display
LCD Size: 8 inch (4:3)
Brightness(cd/m2): 500
Max Resolution: 800(W) x 600(H)
Contrast Ratio: 500:1
Backlight MTBF(hrs) : 25000 System
CPU: Intel Celeron J1900 quad-core on-board SoC, 2GHz
SSD: mSATA I/O Interface
RAM: 2 x 204-pin DDR3L SO-DIMM slots (max. 8GB)
I/O Ports and Switches: 1 x RJ-45 LAN port
1 x RS-232 COM port (DB-9 connector)
(RI/5V/12V)
1 x RS-422/485
2 x USB 3.0
2 x USB 2.0
1 x 9 V to 30 V DC lockable DC jack (2-pin)
1 x Audio port (line-out)
1 x Power switch Power adapter
9V to 30VDC Environment
Operating Temperature: -10^oC to 50^oC (14^oF to 122^oF)
Safety and EMC: CE and FCC Class A certified
Humidity: 10% to 95% (non-condensing)
Storage Temperature: -20^oC to 60^oC (-4^oF to 140^oF)
IP Level: Front IP 65 Physical Characteristics
Color: Black C
Mounting: Stand, panel mount, rack mount,VESA 75x75
Construction: Aluminum front bezel Expansion Slots
1 x Full-size PCIe Mini slot (with mSATA/PCIe/USB signal)
1 x Half-size PCIe Mini slot for Wi-Fi modules LCD
LCD Color: 16.2M
Pixel Pitch (mm): 0.2025 (H) x 0.0675 (V)
Viewing Angle (H-V): 140^o/ 120^o
Touch Screen: 5-wire resistive type flat touchscreen I/O Interface
2 x LAN((GbE))
1 x Power Switch
1 x RS-232((RJ-45))
1 x RS-422/485((DB-9))
1 x Reset Button
2 x USB2.0
2 x USB3.0
1 x Audio(((line-out)))
1 x Power In((9-30V Lockable power jack))
1 x AT/ATX Switch Item Dimension (L inchxW inchxH inch)
8 x 9 x 2

Weight
2.58lb

Warranty Information
2 Years
