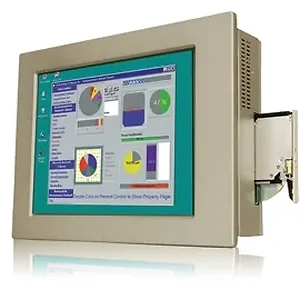

PPC-5150A-H61-P/R-R10 - Iei Technology IEI System PPC-5150A-H61-P/R-R10 15-inch Pentium DC G6xxT 2GB DDR3 Touch Silver B

�  High brightness TFT-LCD panel with LED backlight
�  Multiple storage options: 2.5" SATA HDD, CF slot, and mSATA
�  Dual Ethernet provides continuous network service and allows sharing among different workgroups in two different subnets
�  Optional PCI / PCIe x 1 expansion slot
�  Optional slim type CD-ROM drive bay
�  Robust aluminum front bezel and metal casing
�  IP 66 compliant front panel
�  IEI One Key Recovery solution allows you to create rapid OS backup and recovery (Over 4GB storage capacity)

LCD Size
15"

Max Resolution
1024(W) x 768(H)

Brightness (cd/m²)
400

Contrast Ratio
700:1

LCD Color
16.2M

Backlight MTBF (hrs)
50,000

Touch Screen
Resistive Type 5-Wire with RS-232 interface

Touch Controller
DMC 9000

SBC
POS-H61

CPU
2nd/3rd Generation Intel Core Core i7/ i5/ i3, Pentium and Celeron processor

Chipset
Intel H61

RAM
Two 204-pin DDR3 SO-DIMM slots (Max. 16G)

Ethernet
Realtek RTL8111E PCIe GbE controller supporting ASF 2.0

Audio Codec
Realtek ALC662 audio codec

I/O Ports and Switches
4 x RS-232 COM Port
1 x RS-232/422/485 Port
2 x RJ-45 for LAN Port
4 x USB 2.0, 2 x USB 3.0 on rear
1 x VGA Port
1 x Audio (Line-out, MIC-in)
2 x SFP Fiber LAN
1 x Power Switch
1 x AT / ATX Switch
1 x PCI/PCIe Slot

HDD Driver Bay
1 x 2.5" SATA/IDE HDD bay with anti-shock

SSD
CF Type II, mSATA (SATA2 Signal)

CD-ROM Drive Bay
SATA Slim Type CD-ROM Bay

Expansion Slot
Either 1 x PCI slot or 1 x PCIe slot, 1 x PCIe Mini card

Front Panel Construction
Aluminum

Chassis Contruction
Heavy-duty Steel

Mounting
Panel, Wall, Rack, Stand and Arm VESA 100mm x 100mm

System Cooling
Active with Fan

Item Dimension (L"xW"xH")
5 x 17 x 13

Weight
24.25 lb

Warranty Information
2 Years
