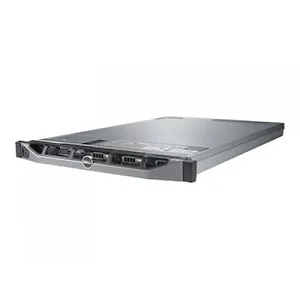

| Product Description | Dell PowerEdge R620 - Xeon E5-2620 2 GHz - Monitor : none. |
| Type | Server |
| Form Factor | Rack-mountable - 1U |
| Server Scalability | 2-way |
| Processor | 1 x Intel Xeon E5-2620 / 2 GHz ( 6-core ) |
| Processor Socket | LGA2011 Socket |
| Processor Main Features | Intel QuickPath Interconnect |
| Cache Memory | 15 MB |
| Cache Per Processor | 15 MB |
| RAM | 8 GB (installed) / 512 GB (max) - DDR3 SDRAM - ECC |
| Storage Controller | RAID ( SATA-600 / SAS 2.0 ) ( Dell PERC H710 ) |
| Server Storage Bays | Hot-swap 2.5" |
| Hard Drive | 2 x 300 GB ( hot-swap ) - SAS-2 |
| Optical Storage | DVD-ROM |
| Card Reader | Yes |
| Monitor | None. |
| Graphics Controller | Matrox G200 |
| Video Memory | 16 MB |
| Networking | Gigabit LAN |
| Power | AC 120/230 V ( 50/60 Hz ) |
| Power Redundancy | Yes |
| OS Provided | No operating system |
| Dimensions (WxDxH) | 19 in x 27.6 in x 1.7 in |
| Environmental Standards | ENERGY STAR Qualified |
| Manufacturer Warranty | 3 years warranty |
| General |
| Server | | | Small business, corporate business | | | Rack-mountable - 1U | | | Status LCD | | | 2-way | | | 1 | | | 8 | | |
| Processor / Chipset |
| Intel Xeon E5-2620 / 2 GHz | | | 6-core | | | Yes | | | 1 | | | 2 | | | Upgradable | | | Intel QuickPath Interconnect | | | LGA2011 Socket | | | Intel C600 | | |
| Cache Memory |
| |
| RAM |
| 8 GB / 512 GB (max) | | | DDR3 SDRAM - ECC | | | DIMM 240-pin | | | Registered | | | 2 x 4 GB | | |
| Hard Drive |
| HDD - hot-swap | | | 2 x 300 GB | | | SAS-2 | | | 10000 rpm | | |
| Storage Controller |
| 1 x RAID - integrated | | | SATA-600 / SAS 2.0 | | | Dell PERC H710 | | | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60 | | | 512 MB | | |
| Optical Storage |
| |
| Card Reader |
| |
| Monitor |
| |
| Graphics Controller |
| Integrated | | | Matrox G200 | | | 16 MB | | | VGA | | |
| Networking |
| Integrated | | | 4 x Gigabit Ethernet | | | Ethernet, Fast Ethernet, Gigabit Ethernet | | | IPMI 2.0 | | | Integrated Dell Remote Access Controller 7 (iDRAC7) | | |
| Expansion / Connectivity |
1 (total) / 0 (free) x external 5.25" Slim Line
8 (total) / 6 (free) x hot-swap 2.5" | | 2 (total) / 1 (free) x CPU
24 (total) / 22 (free) x DIMM 240-pin
2 PCIe 3.0 x16 - half-length, low-profile
1 PCIe 3.0 x16 - half-length, low-profile ( x8 mode ) | | 4 x USB 2.0 ( 2 front, 2 rear )
2 x VGA ( 1 front, 1 rear )
4 x LAN (Gigabit Ethernet)
1 x serial
1 x management | | |
| Miscellaneous |
| Cable management arm, ReadyRails sliding rails | | |
| Power |
| Power supply - hot-plug | | | Yes | | | 1+1 | | | 2 | | | 2 | | | AC 120/230 V ( 50/60 Hz ) | | | 750 Watt | | |
| Operating System / Software |
| No operating system | | | Dell OpenManage | | |
| Environmental Standards |
| |
| Manufacturer Warranty |
| 3 years warranty | | | Limited warranty - 3 years - on-site - response time: next business day | | |
| Dimensions & Weight |
| |
| Environmental Parameters |
| 50 °F | | | 95 °F | | | 10 - 80% (non-condensing) | | |
