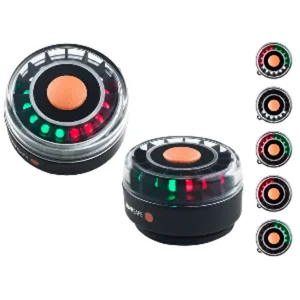

Navilight Portable Tricolor 2NM with Magnet Base
The Navilight Tricolor 2NM - US Coast Guard approved for 2 nautical miles includes a green light to be shown at the starboard side and a red light to be shown at the port side. In addition, it includes the white Sternlight, to be used at the stern. It is battery operated, uses super bright LED light, is water proof, floats and attaches almost anywhere through its double magnetic mounting system.
The green as well as the red lights show an unbroken light over an arc of the horizon of 112,5°. The white Sternlight shows an unbroken light over an arc of the horizon of 135°. All lights work independently, in a combination of all three or red/green together.
Examples of usage:
*Based on the Convention on the International Regulations for Preventing Collisions at Sea, commonly called 72 COLREGs
On a power-driven vessel of 12M or more in length but less than 50M in length:
On a power-driven vessel of less than 12M in length:
On a sailing vessel underway:
On a sailing vessel of less than 20 meters in lengths as backup light:
Specifications:
Modes / approximate burn time:
Mounting System
The double magnetic system consists of the Navilight with its magnetic base, a separate magnetic plate and a screw for attaching the plate to a wooden deck for example. It also holds the light safely on many plastic boats, biminis or any other material by placing the light on top and the magnetic plate underneath. Additionally Navisafe offers a wide range of specially designed magnetic mountings such as the Clamp-on Rail mount, Bendable Suction-mount and the Telescopic Poles that easily allow the lights to be attached.
The Navisafe Portable Navilight Tricolor 2NM with Magnet Base, part number 305-1, is a maritime navigational instrument designed for various vessel types requiring US Coast Guard approved lighting. This battery-operated unit provides a green starboard light, a red port light, and a white sternlight, all utilizing super bright LED technology. Its waterproof and floatable design ensures functionality in marine environments. The integrated double magnetic mounting system, along with included accessories like a magnet bracket, mounting screw, and lanyards, allows for flexible attachment to different surfaces. It supports five operational modes, including a Tricolor Masthead light, Bi-Color sidelight, individual red or green sidelights, and a white Sternlight. This product is suitable for power-driven vessels under 50M in length and sailing vessels, serving as primary or backup navigation lighting.
Navilight Portable Tricolor 2NM with Magnet Base
The Navilight Tricolor 2NM - US Coast Guard approved for 2 nautical miles includes a green light to be shown at the starboard side and a red light to be shown at the port side. In addition, it includes the white Sternlight, to be used at the stern. It is battery operated, uses super bright LED light, is water proof, floats and attaches almost anywhere through its double magnetic mounting system.
The green as well as the red lights show an unbroken light over an arc of the horizon of 112,5°. The white Sternlight shows an unbroken light over an arc of the horizon of 135°. All lights work independently, in a combination of all three or red/green together.
Examples of usage:
*Based on the Convention on the International Regulations for Preventing Collisions at Sea, commonly called 72 COLREGs
On a power-driven vessel of 12M or more in length but less than 50M in length:
This navigation light is suitable for power-driven vessels of 12M or more in length but less than 50M, power-driven vessels less than 12M, and sailing vessels underway. It can also function as a backup light for sailing vessels under 20 meters.
The product includes the Navilight unit with its magnetic base, a separate magnetic plate, a mounting screw, and three lanyards for various fixing and securing options. AAA batteries are not included.
The light offers five modes: Tricolor Masthead (12 hours), Bi-Color sidelight (20 hours), individual red or green sidelight (38 hours each), and white Sternlight (32 hours).
The Navilight has a height of 35mm and a diameter of 68mm. Its net weight is 118g.
305-1 - Navisafe Portable Navilight Tricolor 2NM w/Magnet Base
