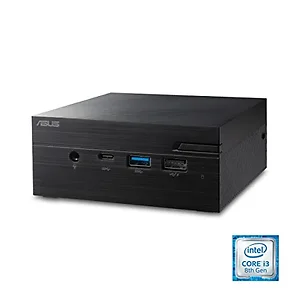

Product Overview
Processor & ChipsetProcessor Manufacturer: IntelMemoryMaximum Memory: 32 GBMemory Technology: DDR4 SDRAMNumber of Total Memory Slots: 2Intel Optane Memory Ready: YesDisplay & GraphicsGraphics Controller Manufacturer: IntelGraphics Memory Technology: DDR4 SDRAMGraphics Memory Accessibility: SharedInterfaces/PortsHDMI (Rear): YesTotal Number of USB Ports: 6Number of USB 2.0 Ports (Front): 1Number of USB 3.1 Ports (Front): 1Number of USB 3.1 Ports (Rear): 2USB Type-C (Front): YesUSB Type-C (Rear): YesUSB Type-C Detail: 1x USB 3.1Gen 1 Type-C (*Front USB3.1 Gen1 Type-C port support the Battery Charging 1.2 technology(BC1.2 capability), *Back USB3.1 Gen1 Type-C port support DisplayPort output)Physical CharacteristicsColor: BlackForm Factor: Mini PCHeight: 1.9"Width: 4.5"Depth: 4.5"Weight (Approximate): 1.54 lbMiscellaneousPackage Contents: miniPC PN60-BB3006MC Desktop Computer AC Adapter Warranty Card Quick Start Guide VESA Mount Kit Features: Security SlotEnergy Star: YesEnvironmentally Friendly: YesEnvironmental Certification: RoHS
Technical Specifications
Color
Black CPU
INTEL Core i3-8130U Graphics
Integrated - Intel UHD Graphics 620 WLAN
INTEL 802.11 ac, BT5 (2x2) Memory
0GB included
Supports 2 x SO-DIMM DDR4 2400 MHz (up to 32GB - 2 x 16GB Storage
0GB included
1 x SATA 6Gb/s for 2.5" 500G/1TB HDD
1 x M.2 2280 for SATA and PCIe 128G/256G SSD
optane 16G Lan
10/100/1000 Mbps Side(Front) I/O
1 x USB3.1 Gen1 Type-C (Support Quick charge)
1 x USB 3.1 Gen1 Type-A
1 x USB 2.0 Type-A
1 x Audio(Combo Mic/Headphone Jack) Back I/O
1 x HDMI, 1 x Mini DP, 1 x COM port, 2 x USB 3.1 Gen1
Type-A, 1 x RJ45 LAN, 1 x DC-in Power Adaptor and Cord
19Vdc, 3.42A, 65W Power Adapter OS Type
W/O OS Item Dimension ( L inch x W inch x H inch)
12 x 7 x 3
Weight
3.42lb
Warranty Information
1 Year Warranty
