Technical Specifications
PWR OVER NET PWR MANAGE 8 DEVICES
The PN0108 Power Over the NET is a control unit that offers remote power management for up to eight devices (computers, hubs, routers, etc.). When connected to an ATEN or Altusen TCP/IP accessible module via its PON (RS232) port it allows administrators from any computer connected to the Internet, whether down the hall, or half way around the world - to control the power off, power on, and reboot status for each attached device.

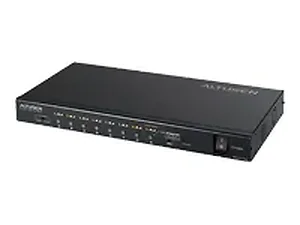

Product Description ATEN ALTUSEN PN0108 - power control unit
Device Type Power control unit - rack-mountable
Dimensions (WxDxH) 17.2 in x 10 in x 1.7 in
Weight 9.3 lbs
Output Voltage ( 50/60 Hz )
Output connector(s) 8 x power IEC 320 EN 60320 C13, power NEMA 5-20
Networking Ethernet 10/100
Manufacturer Warranty 3 years warranty
General
Device Type Power control unit - rack-mountable
Width 17.2 in
Depth 10 in
Height 1.7 in
Weight 9.3 lbs
Power Device
Frequency Required 50/60 Hz
Input Connector(s) 1 x power IEC 320 EN 60320 C14
Output Voltage ( 50/60 Hz )
Output connector(s) 8 x power IEC 320 EN 60320 C13, power NEMA 5-20
Max Electric Current 15 A
Networking
Remote Management Interface Ethernet 10/100
Expansion / Connectivity
Interfaces[ x management - RS-232 - 9 pin D-Sub (DB-9) 1 x management - Ethernet 10Base-T/100Base-TX - RJ-45 2 x network stack device - RS-232 - 9 pin D-Sub (DB-9) 8 x management - RJ-11
Miscellaneous
Cables Included 1 x power cable
Rack Mounting Kit Included
Manufacturer Warranty
Service & Support 3 years warranty
Service
