Technical Specifications

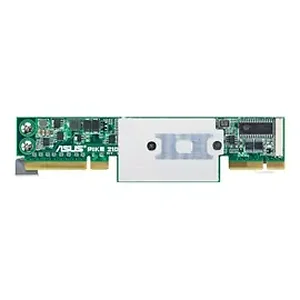

ASUS CONTROLLER CARD PIKE 2108 8-PORT SAS II RAID KIT
FLEXIBLE STORAGE OPTIONS FOR END USERS 1. ASUS PIKE interface 1: PCI-E G2 x8 2. ASUS PIKE interface 2: 8-port SAS signal with SGPIO interface
1. SAS RAID card status LED (lights up and blinks to indicate that the card is working normally) \. BBU cable connector
?Optional PIKE 2108 (8-port SAS II) are available for SAS RAID support ?PIKE card enables on-demand upgrade, and allows customers to invest on basic SKUs for current use ?Reduce qualification resource and inventory management efforts ?Multiple I/O solutions are available without occupying slot 6 in 1U chassis -------------------------
VENDOR: ASUS
MPN: PIKE 2108
UPC: 610839368297
DETAIL SPECIFICATIONS
CHIPSET: LSISAS 2108
INTERFACE: ASUS PIKE Interface
PORTS: 8 ports
RAID LEVELS: RAID 0/ RAID 1/ RAID 10/ RAID 5/ RAID 6/ RAID 50/ RAID 60
DEVICES SUPPORTED: SATA III and SAS II devices
DATA TRANSFER RATE: SATA III and SAS II 6 Gb/s per PHY
FORM FACTOR: 6.44 in x 1.57 in (1U compatible)
OPERATING SYSTEMS SUPPORT: Windows 2008 R2 / SP2 Windows 2003 SP2 Windows 7 Red Hat Enterprise Linux 5.5 / 4.8 SuSE Linux Enterprise Server 11.1/10.3 Free BSD 8.1 Fedora 12 Cent OS 5.5 ESX 4.0 UP1 ESXi 4.0
WEIGHT:[.0 lb
WARRANTY INFORMATION 3 Year Asus Limited
