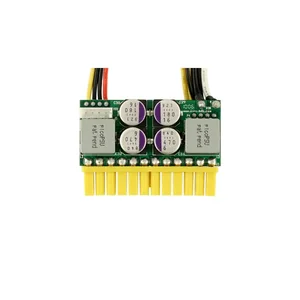

Mini-box PICOPSU-160-XT MiniBox PICOPSU-160-XT 160W Compact ATX12V Power Supply

Specifications

• Compact Design: Extremely small form factor suitable for ultra-compact enclosures.
• Motherboard Compatibility: Fits any motherboard equipped with a 24-pin ATX connector.
• Silent Operation: 100% silent and fanless design with no moving parts.
• Operating Voltage: Works efficiently at only 12V.
• Energy Efficiency: Highly efficient design minimizing heat production.
• Ideal for Low-Power Boards: Compatible with boards such as D945GCLF2, DG45FC, VIA C7, and AMD processors.
• Type: ATX12V power supply unit.
• Power Capacity: 160W total power output.
• Input Specifications:
  • Voltage: 12V
  • Current: 1 - 16A (dependent on load)
• Reliability: MTBF of over 50,000 hours (at temperatures below 85°C).
• DC-Jack: Female, panel mount (2.5 x 5.5 x 10.0 mm).
• Outputs: +3.3V @ 8A, +5V @ 8A, +12V @ 8A, -12V @ 0.05A, +5VSB @ 1.5A.
• Connectors Available: 1x 24-pin ATX, 1x 4-pin 12V, 1x SATA, 1x PATA.
• Certifications: CE, FCC, VCCI certified.
• Form Factor: Mini power supply unit (mini-PSU).
• Dimensions: 31.0 x 53.0 x 15.0 mm.
• RoHS Compliant: Yes.
