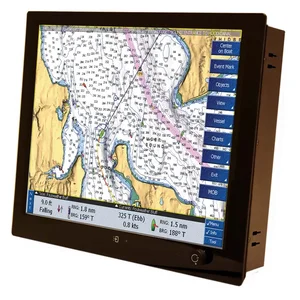

PHT-19 - Seatronx 19" Marine Touch Screen Display

19" Marine Touch Screen Display

The Seatronx marine touch screen display is designed specifically for pilothouse applications where durability meets style. With its rugged construction and bright low-power LED backlighting of up to 300 nits, this display is ideal for both daytime and nighttime use, allowing for complete brightness control using the front panel.

Features Include:

• Mounting Options: Panel Mount, VESA Mount
• Overall Dimensions: 17.03" x 14.85" x 2.28"
• Cutout Dimensions: 16.32" x 14.14" x 2.40"
• Projected Capacitive Touch Technology
• Optically Bonded for Better Clarity
• Optional Remote Control Availability

Specifications:

• Screen Diagonal Size: 19" (Active Area)
• Native Resolution: 1280x1024 pixels
• Contrast Ratio: 1000:1
• Brightness: 300 nits
• Viewing Angles: 89� (left, right), 89� (up, down)
• Dimming Range: 0 to maximum
• Backlight Lifetime: 50,000 hours
• Input Options: HDMI, DVI, VGA, Composite
• Power Requirement: 9-34V
• Power Consumption: 3.5 AMPS @ 24VDC
• Connection Type: Screw Terminal for DC Power
• Sealing: IP68 rated with Potentiometer
• Operating Temperature: 0 to 70�C
• Storage Temperature: -20 to 70�C

The Seatronx 19" Marine Touch Screen Display (PHT-19) is engineered for pilothouse environments requiring a robust and reliable display solution. This unit features a 19-inch active area with a native resolution of 1280x1024 pixels, providing clear visuals for navigation and system monitoring. Its projected capacitive touch technology allows for interactive control, while optical bonding enhances clarity. The display offers 300 nits brightness with a 1000:1 contrast ratio and wide 89� viewing angles, ensuring visibility in varied lighting conditions. With an IP68 rating and a 0 to 70�C operating temperature range, it is designed to withstand demanding marine applications. Input options include HDMI, DVI, VGA, and Composite, supporting integration with diverse systems. Mounting flexibility is provided through panel mount and VESA mount options.
