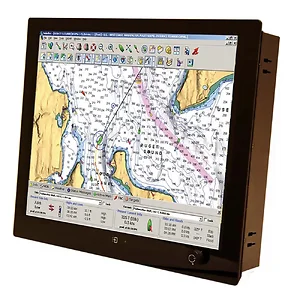

PHT-17 - Seatronx 17" Marine Touchscreen Display

17" Marine Touchscreen Display

The Seatronx marine touchscreen display is engineered for robust performance in challenging environments. Featuring state-of-the-art glass bridge technology, this display is designed to combine durability with sleek aesthetics.

This pilothouse display boasts an impressive brightness of up to 350 nits, ensuring excellent visibility in various lighting conditions. For optimal usability at night, the display can be effortlessly dimmed using the convenient front panel controls.

Key Features:

• Flexible Mounting Options: Panel Mount and VESA Mount
• Compact Dimensions: 15.62" x 13.46" x 2.28"
• Cutout Dimensions: 14.92" x 12.75" x 2.40"
• Sensitive Projected Capacitive Touch Technology
• Enhanced Visuals with Optical Bonding
• Optional Remote Control for Added Convenience

Technical Specifications:

• Diagonal Active Area: 17"
• Native Resolution: 1280x1024 pixels
• Contrast Ratio: 1000:1
• Maximum Brightness: 350 nits
• Viewing Angles: 85� (left/right), 80� (up/down)
• Backlight Dimming Range: 0 to maximum
• Backlight Lifetime: 50,000 hours
• Input Ports: HDMI, DVI, VGA, Composite
• Power Requirements: 9-34V
• Power Consumption: 3 AMPS at 24VDC
• DC Power Connection: Screw Terminal
• Front Sealing Rating: IP68
• Operating Temperature Range: -30 to 85�C
• Storage Temperature Range: -30 to 85�C
