PEXUSB3S24 - Startech 2 Port PCI Express SuperSpeed USB 3.0 Card Adapter with UASP - SATA PEXUSB3S24 Size: 2 Ext Style:

Product Description

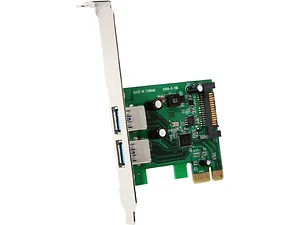

Add 2 SuperSpeed USB 3.0 ports with SATA power to your PCI Express-enabled PC. The PEXUSB3S24 2-Port PCI Express USB 3.0 Card lets you add two USB 3.0 ports to your PCI Express-enabled computer system, with an optional SATA power connector to connect to your system power supply and deliver up to 900mA of power per port to USB 3.0 bus-powered devices (500mA for USB 2.0).Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.0 controller performs up to 70% faster than conventional USB 3.0 when paired with a UASP supported enclosure (Note: UASP is not supported by all operating systems). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. See our UASP test results below for further details.The PCIe USB 3.0 adapter is compliant with USB 3.0 standards for data transfer speeds up to 5 Gbps, while still offering backward compatibility with existing USB 2.0 / 1.1 devices. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.Backed by a StarTech.com 2-year warranty and free lifetime technical support.Improved Performance with UASPUASP is supported in Windowsamp;reg; 8, 8.1, Server 2012 and Linux kernel 2.6.37 or later. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.0 at peak performance.At the same peak in testing, UASP also showed up to an 80% reduction in required processor resources.Test results were obtained using an Intelamp;reg; Ivy Bridge system, StarTech.com add-on USB 3.0 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.

The STARTECH PEXUSB3S24 is a 2-port PCI Express USB 3.0 card adapter designed for integration into PCI Express-enabled computer systems. This adapter provides two SuperSpeed USB 3.0 ports, enabling data transfer speeds up to 5 Gbps. It includes an optional SATA power connector, which can deliver up to 900mA of power per port for USB 3.0 bus-powered devices, or 500mA for USB 2.0 devices. The card maintains backward compatibility with USB 2.0 and 1.1 devices.

Enhanced with UASP (USB Attached SCSI Protocol) support, this controller can offer improved performance when paired with UASP-supported enclosures and compatible operating systems like Windows 8, 8.1, Server 2012, or Linux kernel 2.6.37 and later. The PEXUSB3S24 is suitable for IT professionals or businesses looking to expand USB 3.0 connectivity in existing PCs, including small form-factor computers due to the included low-profile bracket. It addresses the need for faster data transfer and increased power delivery to external USB devices.
