SKU: K9K5LAQCBB |  Mfg. Part: PEXMSATA343  | UPC: 065030856058  |
 2 Reviews  |     Share

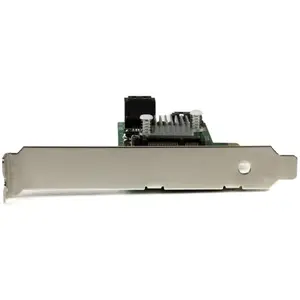

Startech PEXMSATA343 3 Port PCIe SATA III Card with mSATA Slot

Special Order
Ships in 1-2 weeks
Condition: New

$57.17  $77.18
 Free Shipping for this Item

Product Overview

Enhance your computer's storage capabilities with the 3 Port PCIe SATA III Card featuring an mSATA slot. This powerful expansion card provides additional SATA connections, allowing you to connect multiple storage devices with ease. Perfect for users looking to upgrade their existing systems, it supports RAID configurations for data redundancy and higher performance.

Technical Specifications

  • Hardware:
    • Interface: SATA
    • Ports: 3
    • Interface: Mini SATA
    • Bus Type: PCI Express
    • Card Type: Standard Profile (LP bracket included)
    • Port Style: Integrated on Card
    • Industry Standards: Serial ATA 3.0 specification, PCI Express 2.0
    • Chipset ID: Marvell - 88SE9230
  • Connector(s):
    • Connector Type(s): 1 - PCI Express x2 Male
    • Internal Ports: 3 - SATA (7 pin Data) Plug, 1 - mSATA (52 pin Mini SATA) Slot Receptacle
  • Performance:
    • Type and Rate: SATA III (6 Gbps)
    • Port Multiplier: Yes
    • LBA support: 48-bit
    • RAID: Yes
    • Max Drive Capacity: Currently tested up to 4TB per drive
    • Supported RAID Modes: JBOD, RAID 1, RAID 0, RAID 10
  • Software:
    • OS Compatibility: Windows 8/8.1, 7, Vista, XP, Windows Server 2012, 2008 R2, 2003, Mac OS 10.6 and up, Linux
  • Included in Package:
    • 1 - PCIe SATA Controller Card
    • 1 - Low Profile Bracket
    • 1 - Driver CD
    • 1 - Instruction Manual
  • Item Dimension (L"xW"xH"): 5.59 x 6.69 x 1.18
  • Weight: 0.31 lb
  • Warranty Information: 2 Year Warranty

Product Details

  • Manufacturer:
  • Model Number:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • STARTECH
  • PEXMSATA343
  • 065030856058
  • New
  • 0.31 lbs
  • 0 X 0 X 0
  • Feb 19, 2026
  • Jun 06, 2014
Product Identifiers: Brand: Startech • Part #: PEXMSATA343 • UPC: 065030856058

Startech PEXMSATA343 3 Port PCIe SATA III Card with mSATA Slot
