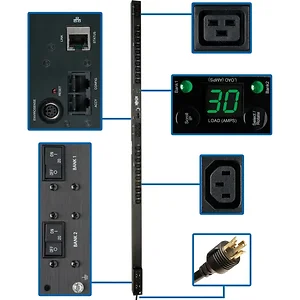

Tripp Lite PDUMV30HVNET PDU, Single Phase Switched, 5.8kW, 30A, 208/240V, 0URM, 20 C13, 4 C19, L6-30P Input

PDU Type
Switched

OUTPUT
Frequency compatibility:50 / 60 Hz
Output nominal voltage:208/240V
Overload protection:Outlets are arranged in two banks of 12 (10 C13 and 2 C19 each). Each bank is protected by a separate 15A thermal circuit breaker
Outlet quantity / type:20 C13, 4 C19
Outlet Type:IEC-C13, IEC-C19
Customized load management receptacles:Each outlet is individually controllable via remote interface INPUT
Nominal Input Voltage(s) Supported:208V AC 240V AC
PDU Input Voltage:208 240
Maximum Input Amps (A):30
Maximum Input Amps (A) Details:Agency de-rated to 24A continuous
PDU Plug Type:NEMA L6-30P
Input cord length (ft.):10
Input cord length (m):3
Voltage compatibility (VAC):208 240
Phase:Single-Phase LEDS ALARMS and SWITCHES
Switches:Pushbutton scroll button enables local power consumption display of each load bank, display rotate and display IP address functions
Front panel LEDs:24 power availability LEDs confirm power off/on status for each built-in outlet Style:Vertical Rackmount
Form factors supported:0U vertical rackmount. Includes mounting brackets. Supports toolless mounting in button-mount compatible racks
PDU Form Factor:Vertical (0U) COMMUNICATIONS
SNMP compatibility:Yes, pre-installed SNMPWEBCARD provides remote monitoring via web, telnet, and SNMP management systems. Remote management gives user ability to turn connected loads on or off individually

CERTIFICATIONS
Certifications:Tested to UL 60950-1 (USA, Canada), Class A (Emissions), NOM (Mexico), RoHS compliant Item Dimension (L"xW"xH"):
72.5 x 6 x 4

Weight:
16.5 lb

Warranty Information:
2 Years
