1 Available
Condition: New
The Tripp Lite PDU will distribute your power effectively so you can get more done. It has a compact design that will fit in most spaces easily. This 12-outlets metered PDU has a black tone that blends nicely with most decor, so you can arrange it in many ways.
SELECTOR
Selector Type:PDUS
Digital Load Meter:Yes
Redundant Power Cords:No
SNMP Compatible:No
Style:Rackmount, Vertical Rackmount, Wallmount/Under-Counter OUTPUT
Output Capacity Details:2.9kW (120V input), 3.0kW (127V input), 2.4kW (100V input) 30A maximum (agency de-rated to 24A continuous)
Frequency Compatibility:50 / 60 Hz
Output Nominal Voltage:100-127V nominal, single phase
Overload Protection:Two 20A breakers protect 6 outlets each
Outlet Quantity / Type:12 NEMA 5-15/20R
Number of Outlets:12
Outlet Type:NEMA 5-15/20R INPUT
PDU Input Voltage:100 120 127
Maximum Input Amps:30
Maximum Input Amps Details:Agency de-rated to 24A continuous
PDU Plug Type:NEMA L5-30P
Input Cord Length (ft.):15
Input Cord Length (m):4.57
Input Phase:Single-Phase LEDS ALARMS and SWITCHES
Front Panel LEDs:Digital LED current meter shows input current level
Form Factors Supported:1U rackmount, 0U vertical rackmount, wall-mount, and under-counter installation
PDU Form Factor:Horizontal (1U, 2U, etc)
Outlets Measurement (Center to Center):Distance between outlets 30.20mm Distance between Bank 1 and Bank 2 41.45mm SPECIAL FEATURES
TVSS Grounding:Rear grounding lug
CERTIFICATIONS
TAA Compliant Option:TAA Compliant Version Available - Order Tripp Lite PDUMH30TAA
Certifications:Tested to UL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03 (Canada), RoHS Compliant Item Dimension (L"xW"xH"):
20.5 x 10 x 2.25
Weight:
7.5 lb
Warranty Information:
2-year limited warranty

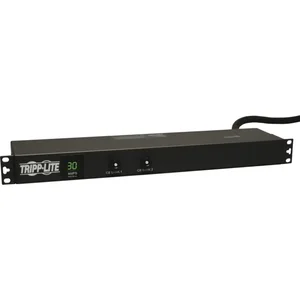

Tripp Lite PDUMH30 PDU METERED 120V 30A 5-15/20R 12 OUTLET L5-30P HORIZONTAL 1URM
