Product Overview

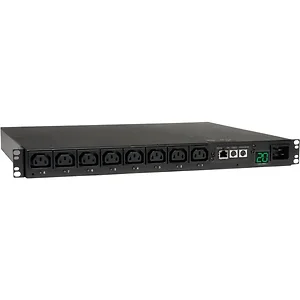

The Tripp Lite PDUMH20HVNET 8-Outlet Switched PDU allows the user to control and monitor power usage. It features a PowerAlert interface that supports user-specified conditions via email, secure web, SNMP, Telnet or SSH interface. This Tripp Lite PDU is also equipped with individually switched outlets that can be controlled in real-time to remotely reboot. Any unused PDU outlets can be electronically locked for safety.
Technical Specifications
PDU Type
Switched Output:
Frequency Compatibility: 50/60 Hz
Output Nominal Voltage: 200, 208, 230, 240
Overload Protection: Outlets are Arranged in a Single Unbreakered Load Bank
Outlet Quantity Type: IEC-C13
Customized Load Management Receptacles: Each Outlet is Individually Controllable Via Remote Interface Input:
PDU Input Voltage: 200, 208, 230, 240
Maximum Input Amps (A): 20
Maximum Input Amps (A) Details: 20A Maximum (Agency De-rated to 16A Continuous) LEDs , Alarms, and Switches:
Switches: NA
Front Panel LEDs: 8 Power Availability LEDs Confirm Power Off/On Status for Each Built-In Outlet Physical Specifications:
Material of Construction: Steel
Style: Rackmount
Form Factors Supported: 1U Rackmount, Includes: Mounting Accessories for 2-4 Post Racks
PDU Form Factor: Horizontal (1U, 2U, Etc.) Environmental:
Relative Humidity: 0-95% Non-Condensing Certifications
Tested to UL 60950-1 (USA, Canada), Class A (Emissions), NOM (Mexico), ), CE (IEC 60950), (RoHS compliant) Item Dimension (L"xW"xH")
5.3 x 20.7 x 23.2
Weight
15.33 lb
Warranty Information
2 Years Limited
